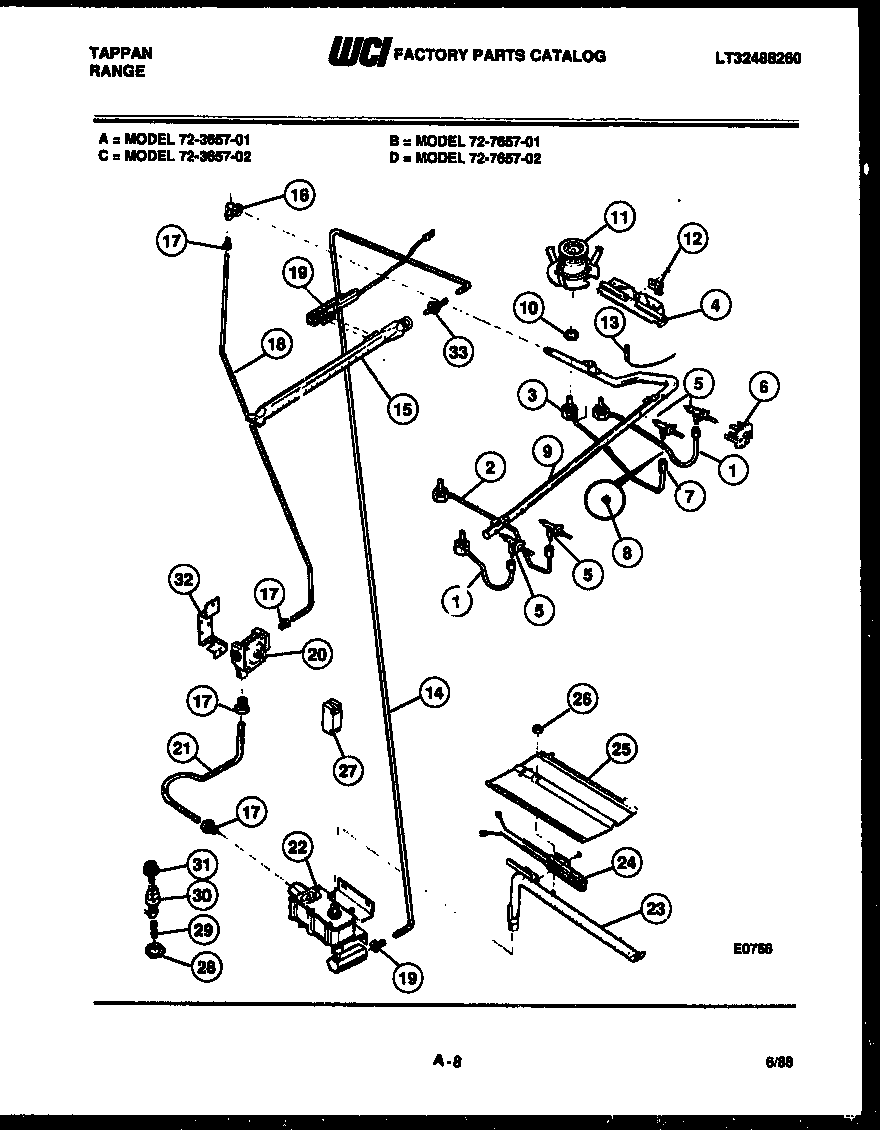

72-3657-23-01 08 – BURNER, MANIFOLD AND GAS CONTROL

72-3657-23-01 08 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-3657-23-01 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*13814WCI 072T821F01
*13814WCI 3051420
*13814BRKT MIXER
1BURNER TUBE-RF & LF
2WCI 079T033H03
3WCI 079T033H02
4WCI 136T355W03
5WCI 3131126
6316035200 Frigidaire Ignition Switch
7NUT COMPRESSN (4)
8WCI 247T074P01
9MANIFOLD, PIPE
10NUT SPECIAL
11WCI 079T032S02
12RETAINER ELECTROS
13WCI 3131686
14WCI 3131643
15WCI 079T026P01
16ELBOW 1/2 NP TO 9/16-24
17FITTING-LOXIT (8)
18TUBE-REGUL TEE
19IGNITER-UPPER OVEN
205303935125 Frigidaire Pressure Regulator
21TUBE-VALVE TO REGUL
225303208499 Frigidaire Safety Gas Valve
23WCI 079T029P03
245303935066 Frigidaire Oven Flat Igniter 17" Leads
25WCI 3131327
265303013272 Frigidaire Oven Nut
275303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
28NUT FUSE
29FUSE, BUSS
30RECEPT-FUSE
31CAP-FUSE RECEPT.
32316091600 Frigidaire Oven Bracket
33WCI 3131641
