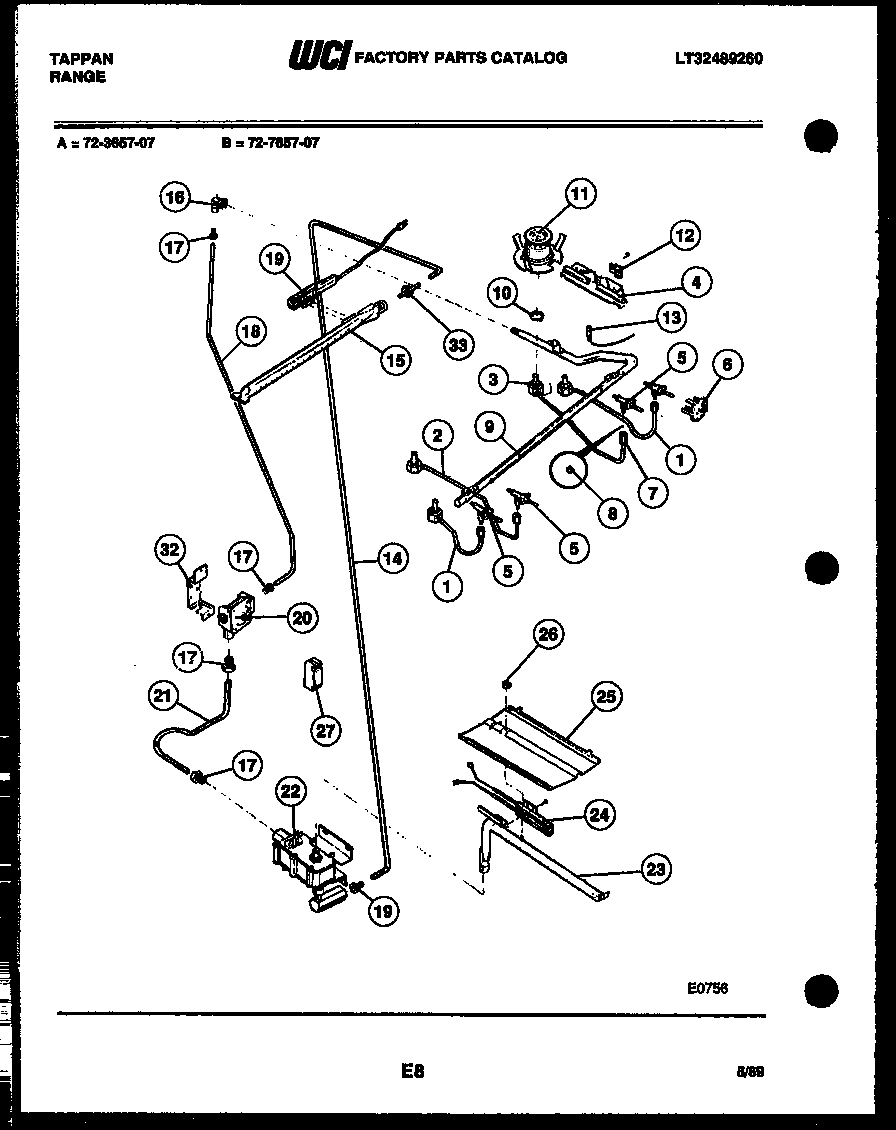

72-3657-23-07 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*23388	BRKT MIXER
*23387	WCI 072T821F01
*23388	WCI 3051420
1	BURNER TUBE-RF & LF
2	WCI 079T033H03
3	WCI 079T033H02
4	WCI 136T355W03
5	WCI 3017846
6	316035200 Frigidaire Ignition Switch
7	NUT COMPRESSN (4)
8	WCI 247T074P01
9	MANIFOLD, PIPE
10	NUT SPECIAL
11	WCI 079T032S02
12	RETAINER ELECTROS
13	WCI 3131686
14	WCI 3131643
15	WCI 079T026P01
16	ELBOW 1/2 NP TO 9/16-24
17	FITTING-LOXIT (8)
18	TUBE-REGUL TEE
19	IGNITER-UPPER OVEN
20	5303935125 Frigidaire Pressure Regulator
21	TUBE-VALVE TO REGUL
22	5303208499 Frigidaire Safety Gas Valve
23	WCI 079T029P03
24	5303935066 Frigidaire Oven Flat Igniter 17" Leads
25	WCI 3131327
26	5303013272 Frigidaire Oven Nut
27	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
32	316091600 Frigidaire Oven Bracket
33	WCI 3131641
