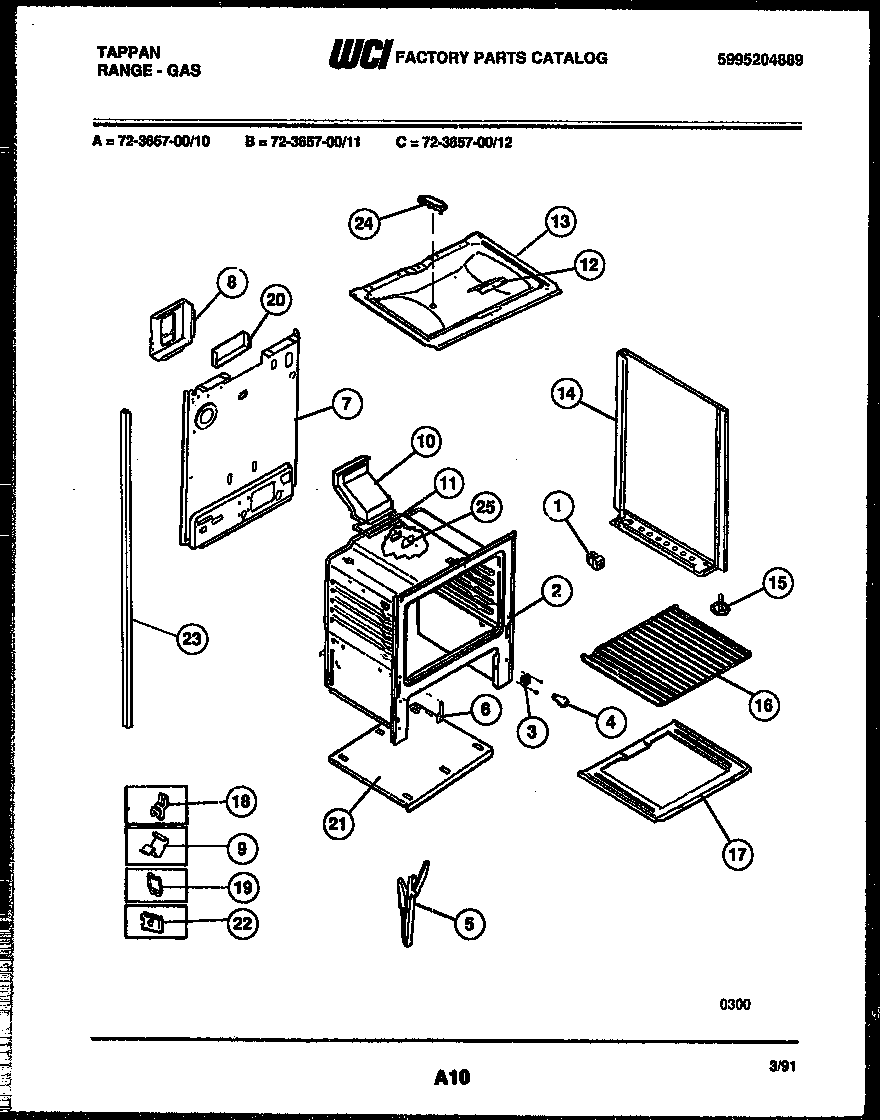

72-3657-23-12 09 – LOWER BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHAN-DOOR HINGE (2)
6	WCI 3131570
6A	5304534000 Frigidaire Cord
7	WCI 3203082
8	WCI 3131660
9	CLIP-WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 08067757
13	WCI 3011597
14	WCI 5303269543
14	PNL-BODYSIDE RH-ALMOND
14A	PNL-BODYSIDE LH-ALMOND
14A	WCI 5303269545
15	SCREW-LEVELING
16	316067902 Frigidaire Oven Rack
17	BTTM-OVEN
17B	INSUL - OVEN BACK (NON-ILLUSTRATED)
17A	INSULATION, OVEN WRAPPER
18	5303284616 Frigidaire Range Bulb Clip Thermostat
18A	WCI 08067961
19	316539800 Frigidaire Oven Retainer
20B	316064600 Frigidaire Oven Support
20A	3131903 Frigidaire Door/Drawer Bumper
20	WCI 3131348
21	WCI 5303270160
21A	COVER-POWER CORD, (NON-ILLUSTRATED)
22	3203010 Frigidaire Clip
22A	COVER-OVEN FRONT
23	WCI 5303208642
23A	TUBE-POST LH
24D	WCI 5303271606
24	WCI 3015371
24C	ANTI-TIP KIT (NOT ILLUSTRATED)
24A	INSUL-WOOL
24B	316282700 Frigidaire Oven Screw
25	COVER-IGNITOR
