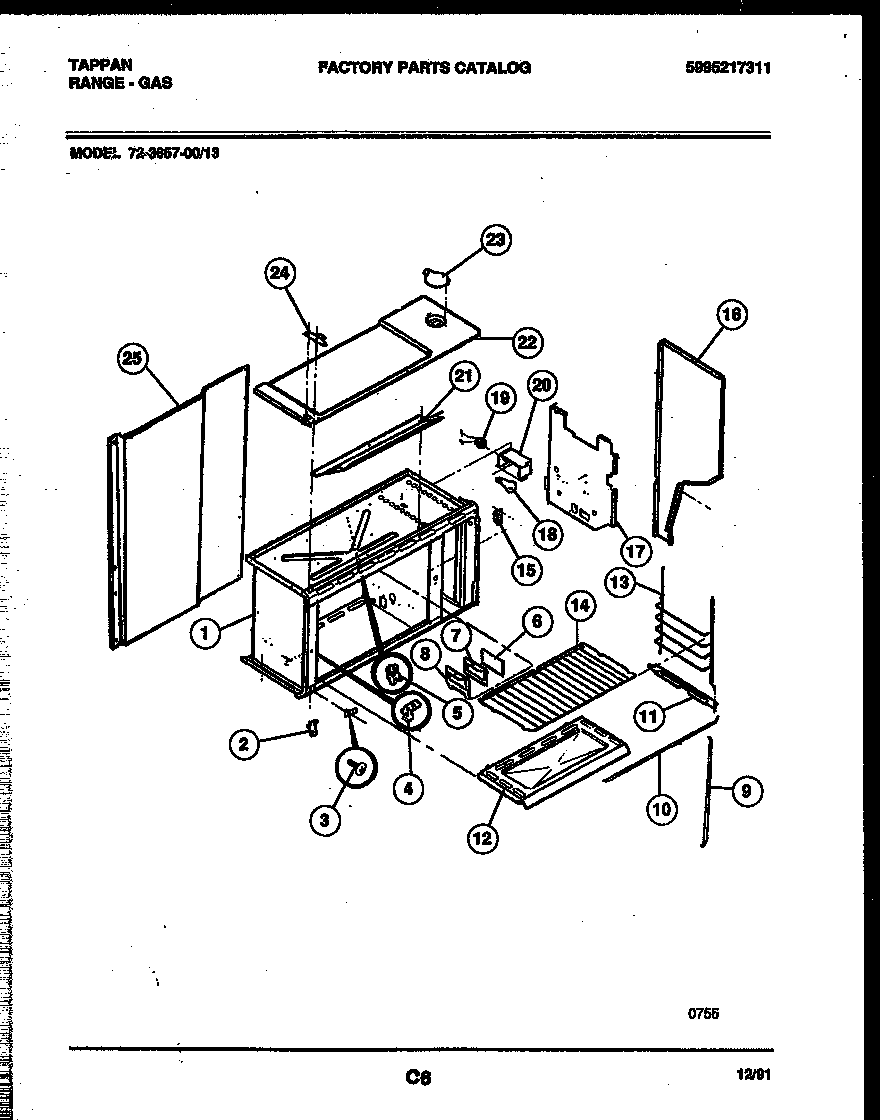

72-3657-23-13 10 – UPPER BODY PARTS

72-3657-23-13 10 – UPPER BODY PARTS

Written by

in

72-3657-23-13 10 – UPPER BODY PARTS

Products

PositionProduct
*64247INSUL WOOL
*64247WCI 3204440
*64246BRKT-CONNEC MTG
*64247INSUL O/U UPPER
2HINGE-DOOR ASSY
3WCI 636T070P02
4ARETAINER OVEN BURN UPPER
4WCI 08011665
55303284616 Frigidaire Range Bulb Clip Thermostat
6GLASS-OVN LITE LENS
7GSKT OVEN LIGHT
8WCI 08011669
9WCI 3201722
10WCI 3201721
11GLIDE-OVEN BTM
12WCI 3200488
13GLIDE, OVEN RACK (2)
14RACK-OVEN, FLAT
15WCI 08011680
16PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
16PANEL-BODYSIDE, ALMOND, RH
17SHIELD-WOOL
18316538904 Frigidaire Oven Lamp Light
19316116400 Frigidaire Oven Light Socket
20WCI 08011684
21FLUE BACK U/O
22PNL-TOP U/O
23WCI 08067732
24HINGE-DOOR-TOP
25WCI 3051236
