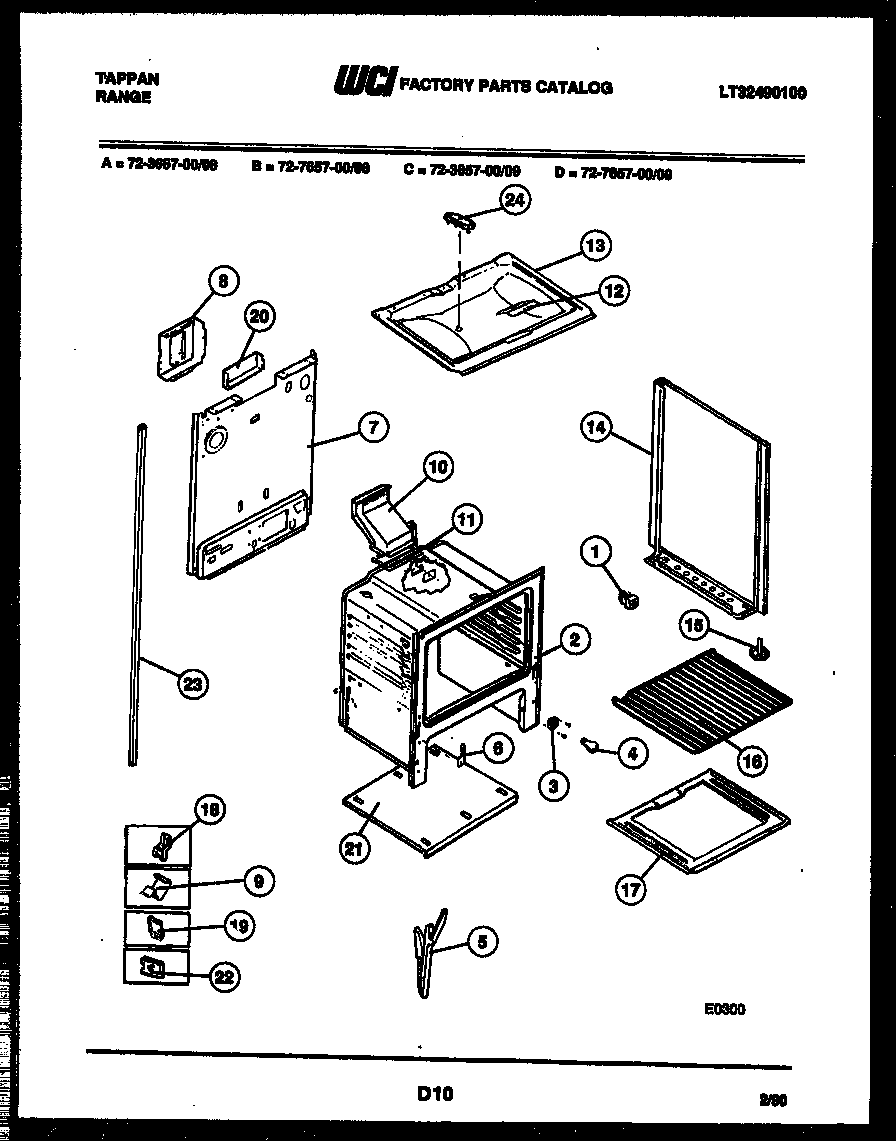

72-3657-66-09 09 – LOWER BODY PARTS

Products

PositionProduct
*36101316282700 Frigidaire Oven Screw
*36101INSUL-WOOL
*36101WASHER-BLACK (4)
*36101WCI 3051511
*36101ANTI-TIP KIT (NOT ILLUSTRATED)
*361015300809968 Frigidaire Dishwasher P-1 Washer
1SPACER-BDYSDE (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHANL-DR HNG (2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3203082
8WCI 655T421F02-18
9CLIP, WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 3131101
13WCI 095T030F02-86
14APNL B/S-RH (WHEAT)
14PNL B/S-LH (WHEAT)
15WCI 636M004P01
16316067902 Frigidaire Oven Rack
17WCI 058T036F02-86
17AWCI 3131201
17BWCI 3131246
185303284616 Frigidaire Range Bulb Clip Thermostat
18AFSTNR-POWER CORD (NON-ILLUSTRATED)
19316539800 Frigidaire Oven Retainer
20A3131903 Frigidaire Door/Drawer Bumper
20B316064600 Frigidaire Oven Support
20WCI 3131348
21WCI 3131180
21ACOVER-POWER CORD, (NON-ILLUSTRATED)
223203010 Frigidaire Clip
22ACOVER FRNT MAIN (NON-ILLUSTRATED)
23ATUBE-POST LH
23WCI 5303208642
24WCI 3015371
