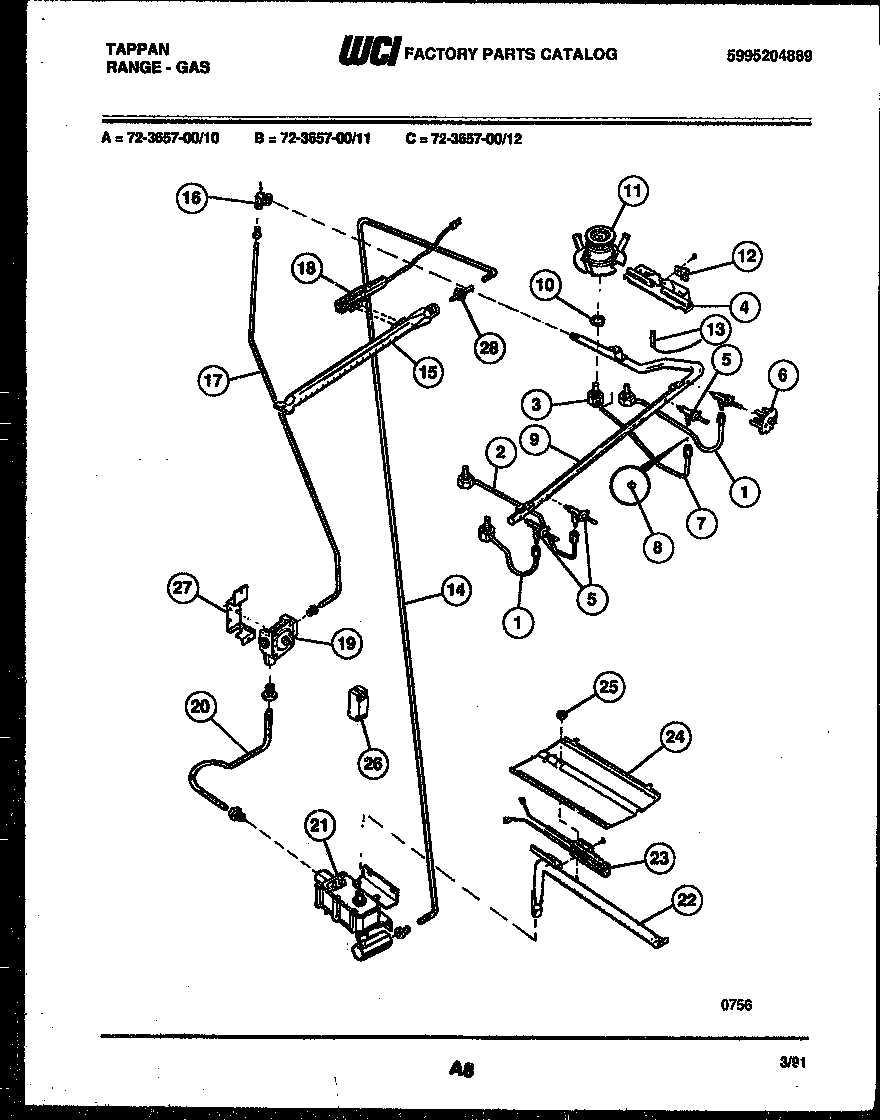

72-3657-66-11 08 – BURNER, MANIFOLD AND GAS CONTROL

72-3657-66-11 08 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-3657-66-11 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*45914BRKT MIXER
*45914WCI 3051420
*45914WCI 3018603
*45914316048200 Frigidaire Oven Screw
1BURNER TUBE-RF & LF
2WCI 5303011570
3WCI 5303011569
4WCI 3206267
5VALVE 3 POS (4)
6316035200 Frigidaire Ignition Switch
7NUT COMPRESSN (4)
8FERRULE (4)
9WCI 3018861
10NUT, SPECIAL
11BURNER TOP (4)
12WCI 3018617
13IGNITER-TOP BURNER (4)
14WCI 5303211073
15BURNER-UPPER OVEN
16ELBOW 1/2 NP TO 9/16-24
17TUBE-ALUM 3/8 REG/MANIFOLD PIPE
18IGNITER-UPPER OVEN
195303935125 Frigidaire Pressure Regulator
20TUBE-VALVE TO REGUL
215303208499 Frigidaire Safety Gas Valve
22WCI 5303131634
235303935066 Frigidaire Oven Flat Igniter 17" Leads
24WCI 3203265
255303013272 Frigidaire Oven Nut
265303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
27316091600 Frigidaire Oven Bracket
28WCI 5303211078
