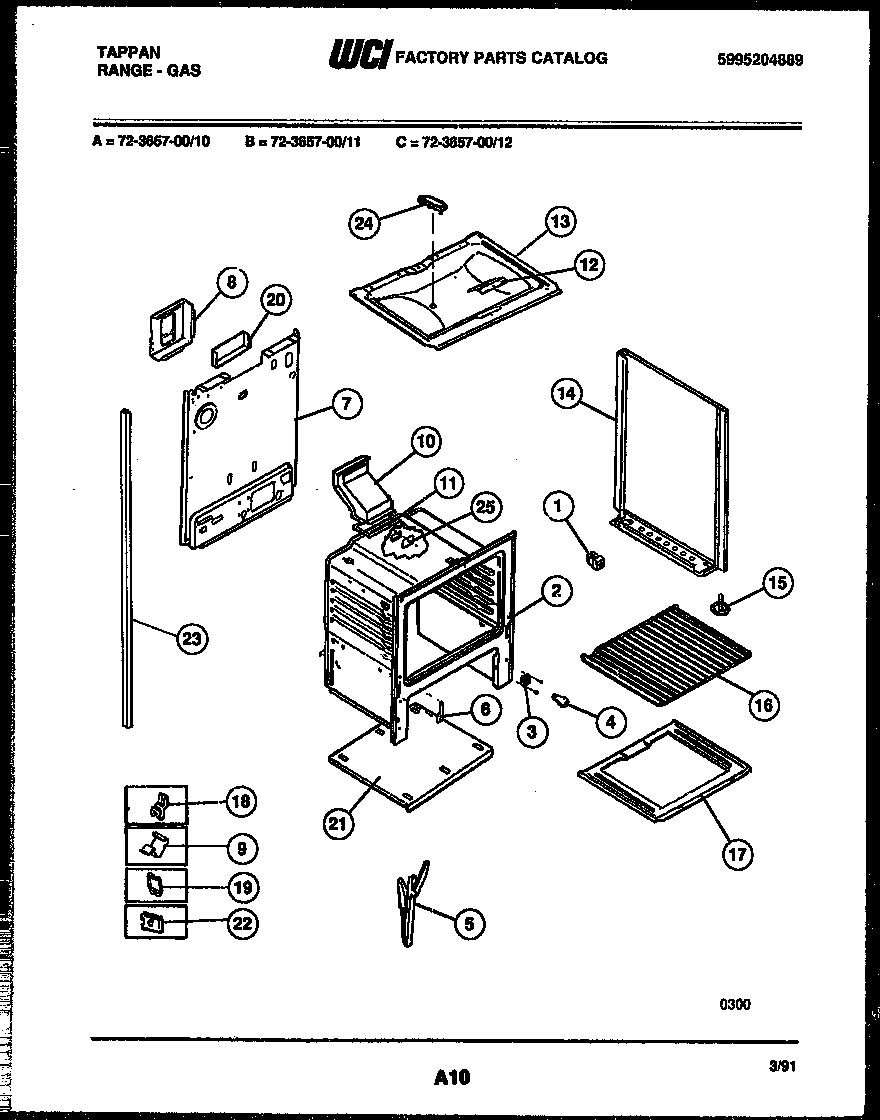

72-3657-66-12 09 – LOWER BODY PARTS

72-3657-66-12 09 – LOWER BODY PARTS

Written by

in

72-3657-66-12 09 – LOWER BODY PARTS

Products

PositionProduct
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6WCI 3131570
6A5304534000 Frigidaire Cord
7WCI 3203082
8WCI 3131660
9CLIP-WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 08067757
13WCI 3011597
14APNL B/S-RH (WHEAT)
14PNL B/S-LH (WHEAT)
14AWCI 5303261918
14PNL-B/S RH-WHEAT
15SCREW-LEVELING
16316067902 Frigidaire Oven Rack
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
17AINSULATION, OVEN WRAPPER
17BTTM-OVEN
18AWCI 08067961
185303284616 Frigidaire Range Bulb Clip Thermostat
19316539800 Frigidaire Oven Retainer
20WCI 3131348
20B316064600 Frigidaire Oven Support
20A3131903 Frigidaire Door/Drawer Bumper
21ACOVER-POWER CORD, (NON-ILLUSTRATED)
21WCI 5303270160
223203010 Frigidaire Clip
22ACOVER-OVEN FRONT
23ATUBE-POST LH
23WCI 5303208642
24CANTI-TIP KIT (NOT ILLUSTRATED)
24AINSUL-WOOL
24DWCI 5303271606
24WCI 3015371
24B316282700 Frigidaire Oven Screw
25COVER-IGNITOR
