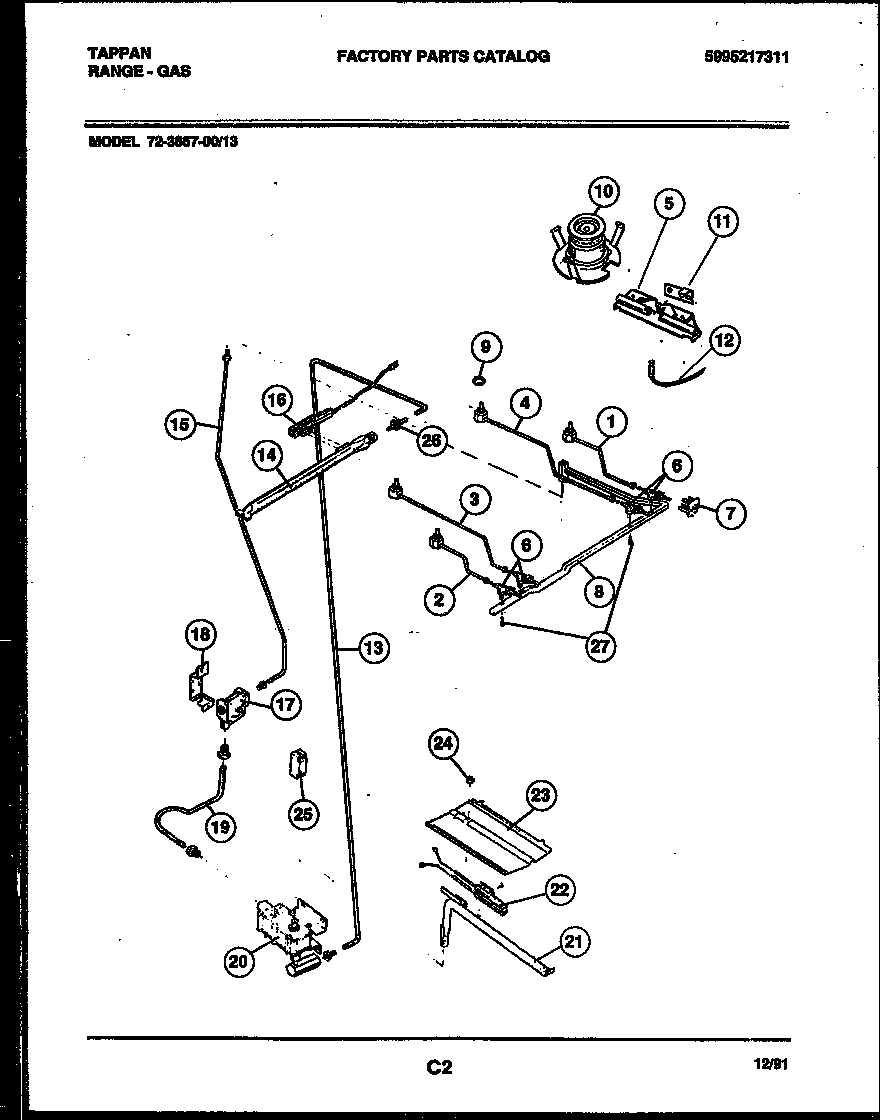

72-3657-66-13 08 – BURNER, MANIFOLD AND GAS CONTROL

72-3657-66-13 08 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-3657-66-13 08 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*64233BRKT MIXER
*64234WCI 3051420
*64233WCI 3018603
1WCI 5303283665
2WCI 5303283666
3WCI 5303283668
4WCI 5303283667
5WCI 3206267
6VALVE-TOP 3 POS (4)
7SWITCH-IGNITER (4)
8WCI 5303271375
9NUT, SPECIAL
10BURNER TOP (4)
11WCI 3018617
12ELECTRODE
13WCI 5303211073
14BURNER-UPPER OVEN
15TUBE-ALUM 3/8 REG/MANIFOLD PIPE
16IGNITER-UPPER OVEN
175303935125 Frigidaire Pressure Regulator
18316091600 Frigidaire Oven Bracket
19TUBE-VALVE TO REGUL
205303208499 Frigidaire Safety Gas Valve
21WCI 5303131634
225303935066 Frigidaire Oven Flat Igniter 17" Leads
23WCI 3203265
245303013272 Frigidaire Oven Nut
255303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
26WCI 5303211078
27316048200 Frigidaire Oven Screw
