72-3662-00-01 07 – LOWER BODY PARTS

72-3662-00-01 07 – LOWER BODY PARTS

Written by

in

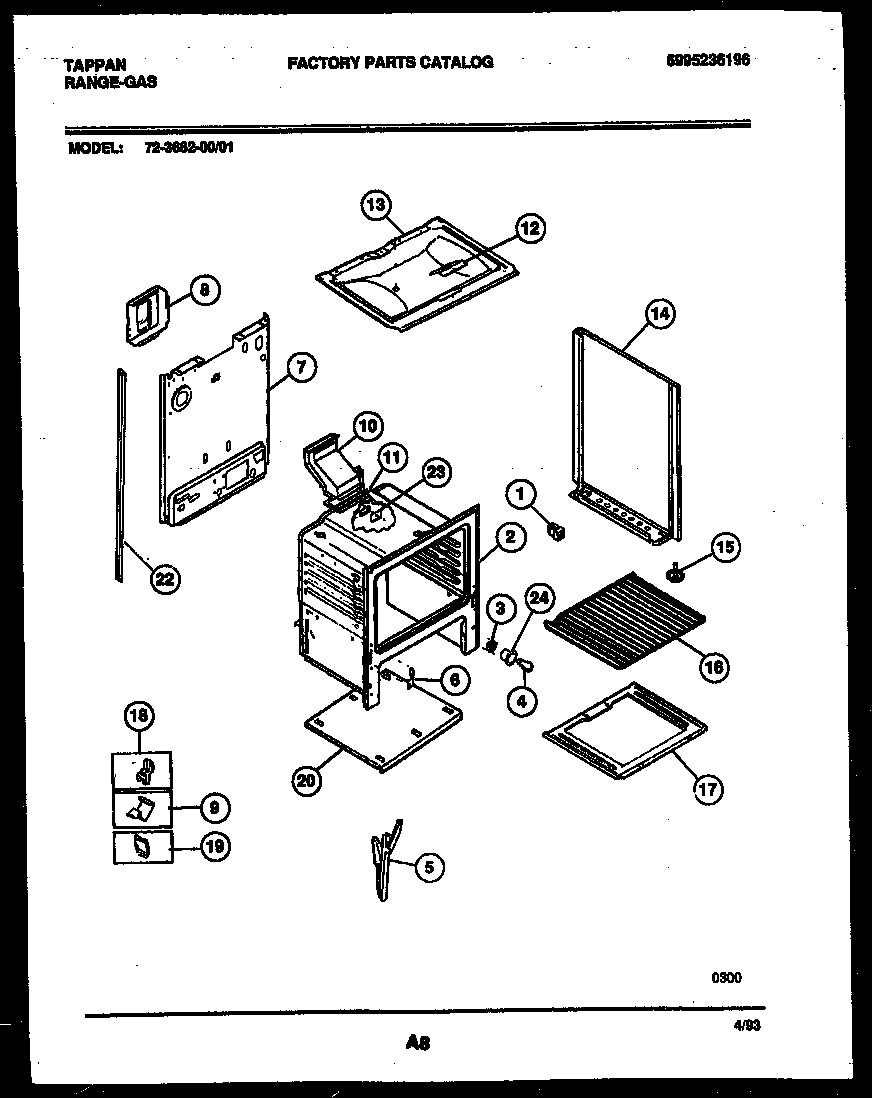

72-3662-00-01 07 – LOWER BODY PARTS

Products

PositionProduct
*84189WCI 3015371
*84189WCI 08010570
*84189WCI 19100220001
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5Hinge,oven door ,(2)
6A5304534000 Frigidaire Cord
6WCI 3131570
7WCI 3203082
8WCI 3131660
9CLIP-WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 08067757
13WCI 3011597
14PNL-B/S-RH-WHITE
14PNL-B/S-LH-WHITE
15SCREW-LEVELING
16316067902 Frigidaire Oven Rack
17BTTM-OVEN
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
17AINSULATION, OVEN WRAPPER
185303284616 Frigidaire Range Bulb Clip Thermostat
18AWCI 08067961
19B316064600 Frigidaire Oven Support
19316539800 Frigidaire Oven Retainer
19A3131903 Frigidaire Door/Drawer Bumper
20ACOVER-OVEN FRONT
20WCI 5303270160
22DSHIELD-HEAT
22BINSUL-WOOL
22C316282700 Frigidaire Oven Screw
22WCI 5303208642
22ATUBE-POST LH
23AANTI-TIP KIT (NOT ILLUSTRATED)
23COVER-IGNITOR
24WCI 5303271606
