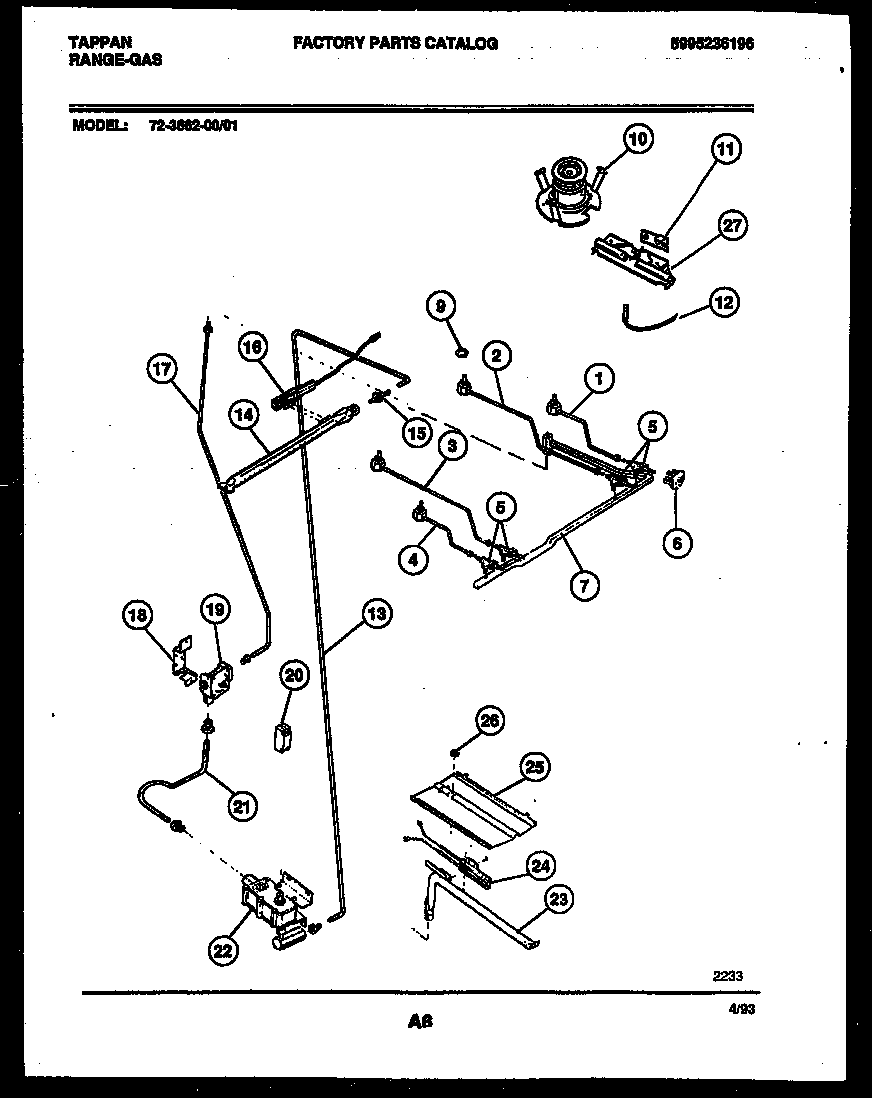

72-3662-23-01 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*84183WCI 3051420
*84183BRKT MIXER
*84182WCI 3018603
1WCI 5303296366
2WCI 5303296368
3WCI 5303296369
4WCI 5303296367
5WCI 316020404
6SWITCH-IGNITER, (4)
7WCI 5303271375
9NUT, SPECIAL
10BURNER TOP (4)
11WCI 3018617
12ELECTRODE
13WCI 5303211073
14BURNER-UPPER OVEN
15WCI 316059100
16IGNITER-UPPER OVEN
17TUBE-ALUM 3/8 REG/MANIFOLD PIPE
18316091600 Frigidaire Oven Bracket
195303935125 Frigidaire Pressure Regulator
205303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
21TUBE-VALVE TO REGUL
225303208499 Frigidaire Safety Gas Valve
23WCI 5303131634
245303935066 Frigidaire Oven Flat Igniter 17" Leads
25WCI 3203265
265303013272 Frigidaire Oven Nut
27WCI 3206267
