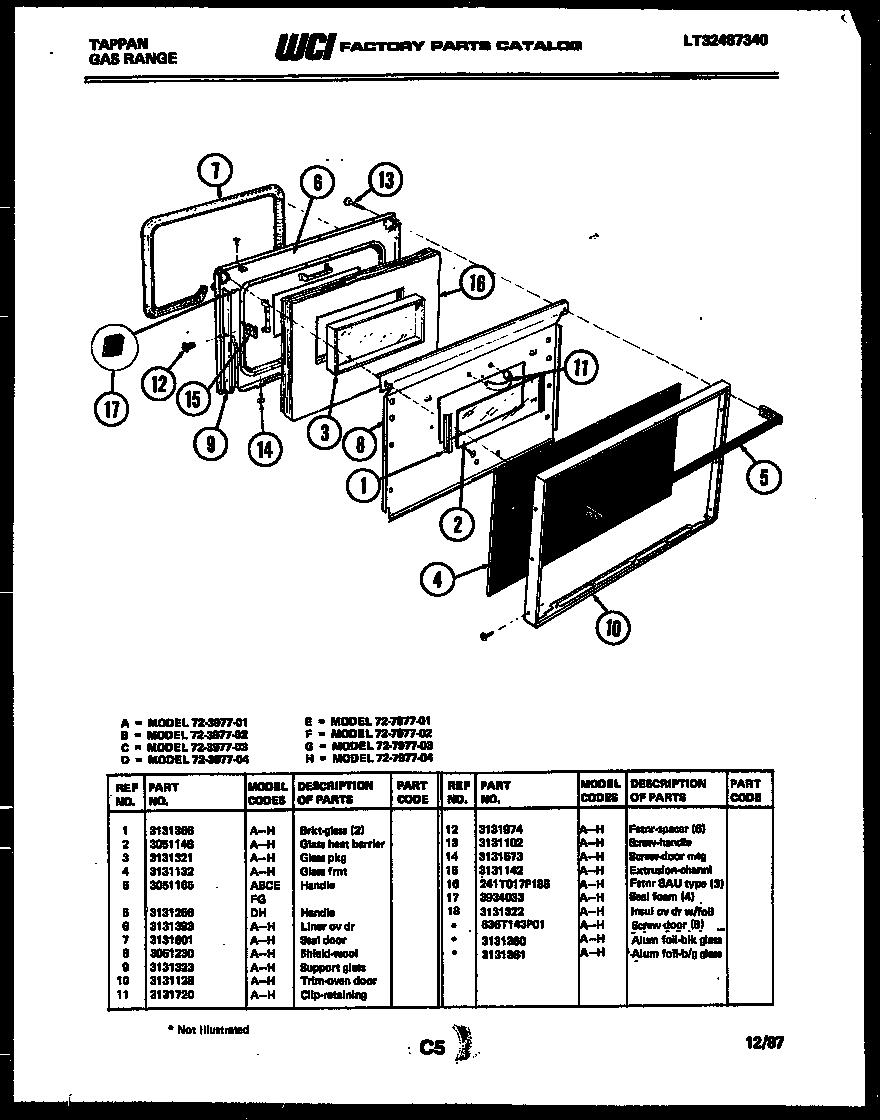

72-3977-00-01 05 – LOWER OVEN DOOR PARTS

Products

Position	Product
*91157	5303300265 Frigidaire Oven Screw
*91158	5303208655 Frigidaire Reflector Assembly
*91158	ALUM FOIL-B/G GLASS
1	BRKT GLASS (2)
2	WCI 3051148
3	WCI 3131321
4	GLASS FRNT
5	WCI 3051165
6	WCI 3131393
7	5303131601 Frigidaire Oven Seal
8	WCI 3051230
9	SUPPORT, GLASS
10	WCI 3131128
11	CLIP-RETAINING
12	FSTNR. SPACER (6)
13	SCREW-HANDLE
14	SCREW DOOR MTG
15	EXTRUSION-CHANNL
16	FSTNR 8AU TYPE (3)
17	SEAL, FOAM (4)
18	WCI 3131322
