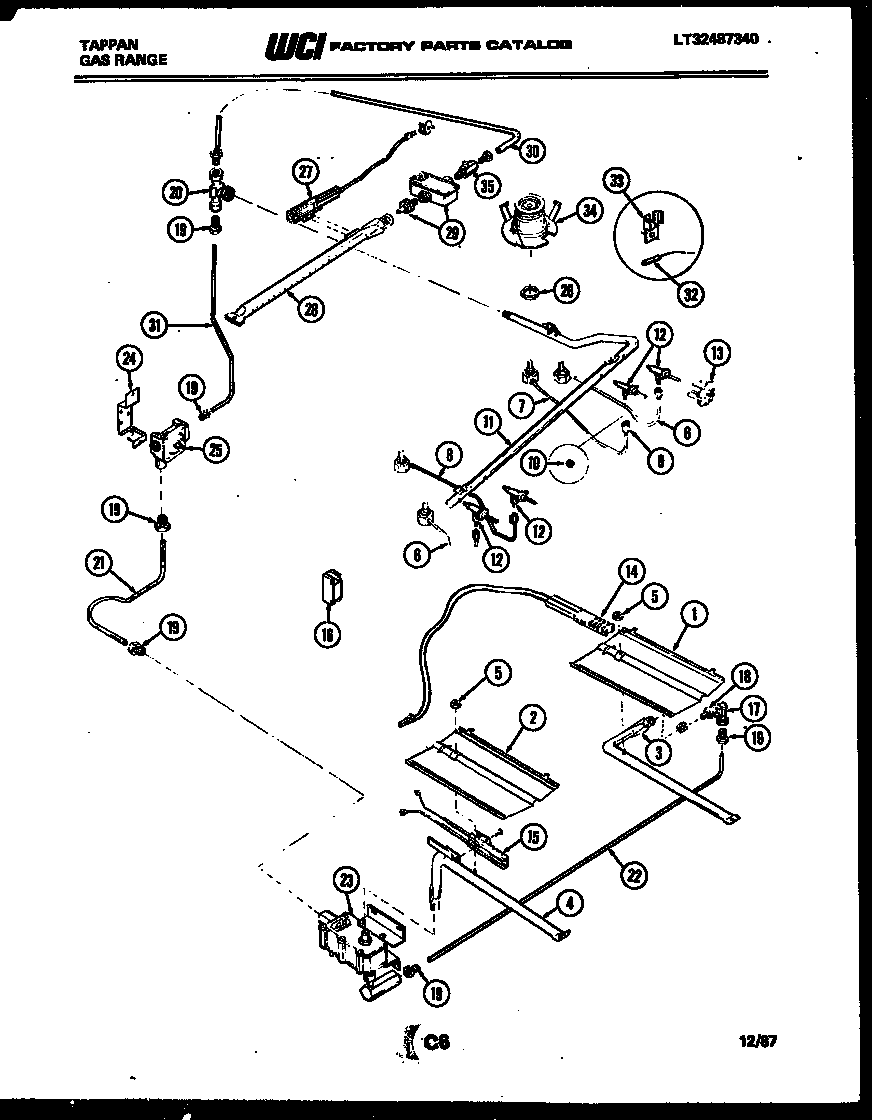

72-3977-00-02 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*91181	TUBE-SPACER (NON-ILLUSTRATED)
*91180	SPACER-BAFFLE (2) (NON-ILLUSTRATED)
1	WCI 3131283
2	BAFFLE-OVN BURNER
3	WCI 079T028P01
4	WCI 3131290
5	5303013272 Frigidaire Oven Nut
6	BURNER TUBE-RF & LF
7	WCI 079T003H02
8	WCI 079T003H03
9	NUT COMPRESSN (4)
10	WCI 247T074P01
11	WCI 493T055P03
12	WCI 3131126
13	316035200 Frigidaire Ignition Switch
14	5303935068 Frigidaire Flat Igniter
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	5304505695 Frigidaire Oven Module
17	WCI 455T008P02
18	NUT
19	FITTING-LOXIT (8)
20	FITTING-TEE
21	TUBE-VALVE TO REGUL
22	TUBE-VALVE TO MIXER ELBOW
23	5303208499 Frigidaire Safety Gas Valve
24	WCI 3131130
25	5303935125 Frigidaire Pressure Regulator
26	NUT SPECIAL
27	IGNITER-UPPER OVEN
28	WCI 079T026P01
29	WCI 3131623
30	WCI 3131626
31	TUBE-REGUL TEE
32	IGNITER-TOP BURNR (4)
33	RETAINER IGNITER
34	WCI 079T032S02
35	WCI 3131624
