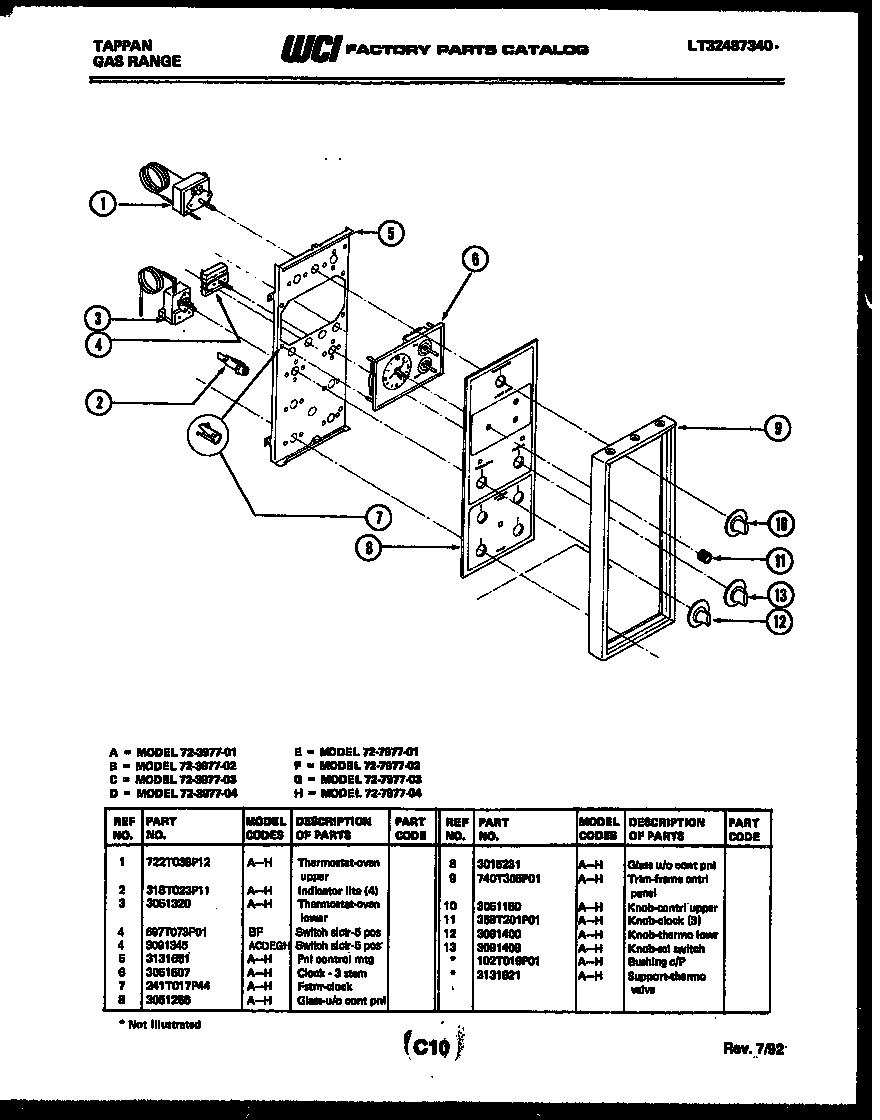

72-3977-66-01 08 – CONTROL PANEL

72-3977-66-01 08 – CONTROL PANEL

Written by

in

72-3977-66-01 08 – CONTROL PANEL

Products

PositionProduct
*91245BUSHING C/P
*91245WCI 3131621
1THERMO-OVEN-UPPER
2INDICATOR LIGHT (4)
3THERMO-OVEN LOWER
4SWITCH SLCTR-5 POS
5WCI 3131651
6WCI 3051507
7FSTNR-CLOCK
8WCI 3051256
8WCI 3015231
9TRIM-FRAME CONTROL PANEL
10KNOB-CONTROL UPPER
11WCI 358T201P01
12KNOB-THERMO LOWR
13WCI 3091408
