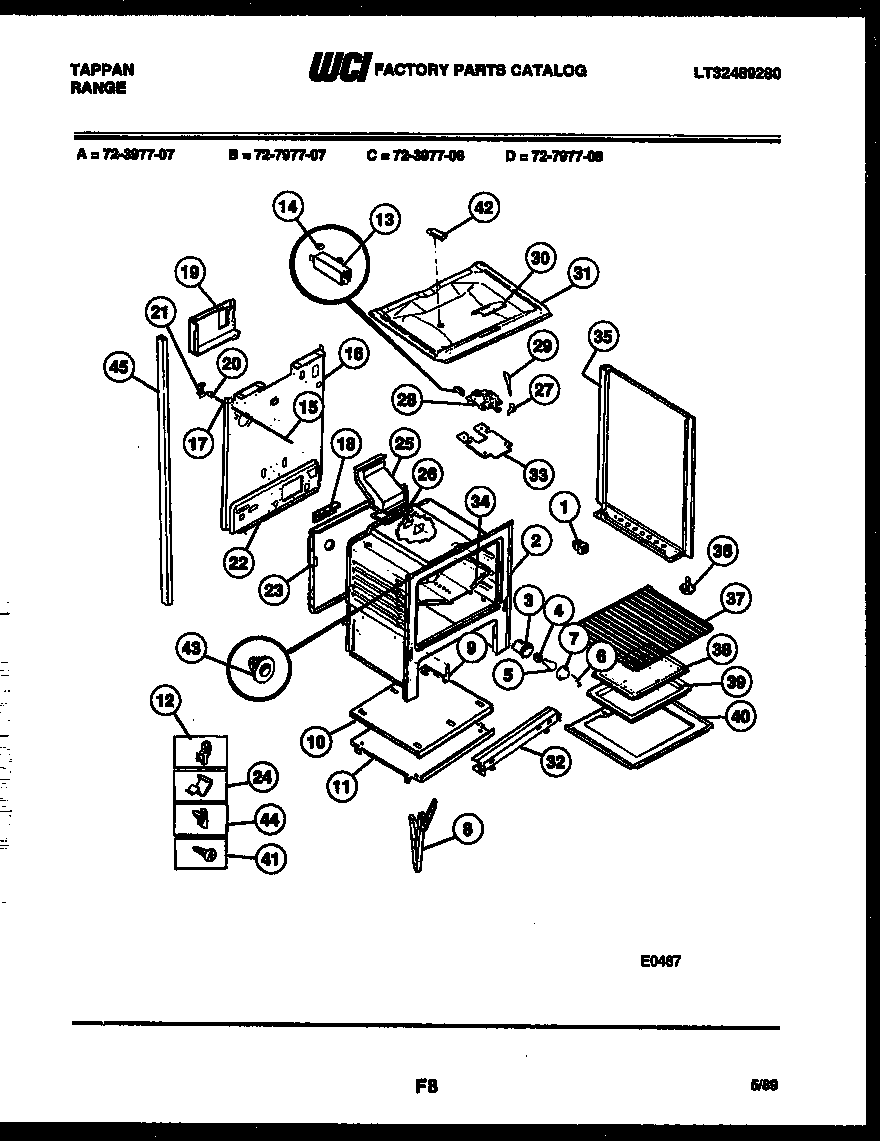

72-3977-66-07 07 – LOWER BODY PARTS

Products

Position	Product
*23531	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*23531	5300809968 Frigidaire Dishwasher P-1 Washer
*23531	WCI 3131630
*23531	WASHER-BLACK
1	WCI 665T188P02
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WCI 3131104
7	WCI 3131298
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11	WCI 3131313
11A	WCI 655T437F01
12	CLIP-TUBING (2)
13	WCI 3131672
14	WCI 241T001P01
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
15	WCI 174T329P01
15A	5304534000 Frigidaire Cord
16	WCI 3131567
17	ROD-LIGHT SWITCH
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 3131590
23	WCI 3131316
24	CLIP, WIRE
25	WCI 3131931
26B	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
26A	SHIELD-LATCH (NON-ILLUSTRATED)
26	316542102 Frigidaire Flue Gasket
27	WCI 358T158S02
28	WCI 3015453
29	WCI 3131357
30	WCI 3131101
31	WCI 095T030F02-95
32	SHIELD-FRONT
33	SHIELD-OVN TOP
34	WCI 3200836
35A	PNL B/S-RH (WHEAT)
35	PNL B/S-LH (WHEAT)
36	WCI 636M004P01
37	316067902 Frigidaire Oven Rack
38	WCI 3131356
39	PAN, BROILER
40	WCI 058T036F03-86
40A	316064600 Frigidaire Oven Support
40B	3131903 Frigidaire Door/Drawer Bumper
41	316282700 Frigidaire Oven Screw
42	COVER-BURNER BOX
43	BUTTON-REMOTE SW
43E	INSULATION, OVEN WRAPPER
43D	INSULATION, OVEN TOP
43F	WCI 655T434F01
43A	FSTNR-POWER CORD (NON-ILLUSTRATED)
43C	08067973 Frigidaire 0 Insulation
43B	INSUL OVEN BACK (NON-ILLUSTRATED)
44	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
45A	WCI 3051724
45	WCI 3051723
