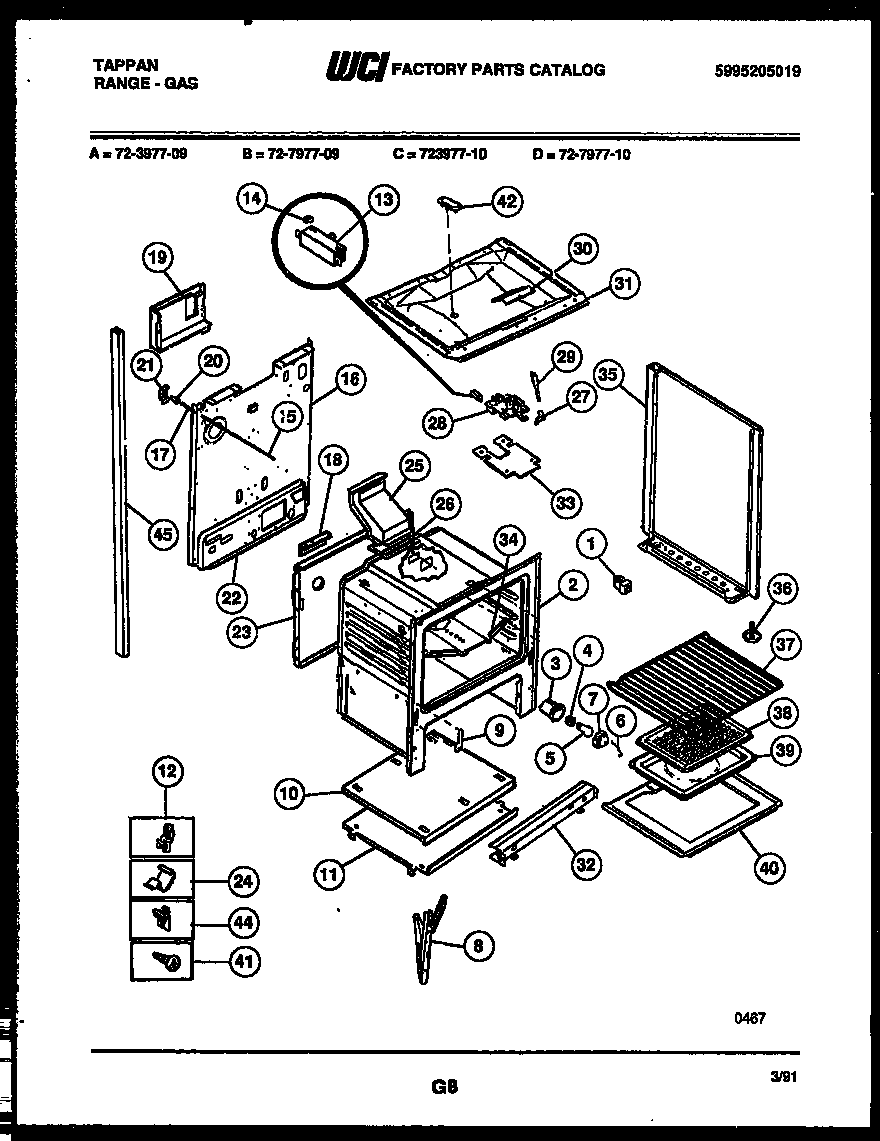

72-3977-66-10 07 – LOWER BODY PARTS

72-3977-66-10 07 – LOWER BODY PARTS

Written by

in

72-3977-66-10 07 – LOWER BODY PARTS

Products

PositionProduct
*23677SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*23677WCI 191S018F197
*23677SHIELD-HEAT
*23677ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 08067992
11WCI 3131313
12WCI 08067754
13WCI 3131672
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
15A5304534000 Frigidaire Cord
15WCI 08067758
16WCI 3203082
17WCI 5303209316
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 3131590
23WCI 08067991
24CLIP-WIRE
25WCI 3131931
26316542102 Frigidaire Flue Gasket
26ASHIELD-LATCH (NON-ILLUSTRATED)
26BWCI 08013188
27WCI 3203218
28WCI 5303015453
29WCI 5303131357
30WCI 08067757
31WCI 3011597
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3200836
35APNL-B/S RH-WHEAT
35PNL-B/S LH-WHEAT
36SCREW-LEVELING
37316067902 Frigidaire Oven Rack
38WCI 5303131356
39PAN-BROILER
40A316064600 Frigidaire Oven Support
40B3131903 Frigidaire Door/Drawer Bumper
40BTTM-OVEN
41316282700 Frigidaire Oven Screw
42WCI 3015371
42AWCI 08067961
42D08067973 Frigidaire 0 Insulation
42GINSULATION, OVEN WRAPPER
42EINSULATION, OVEN TOP
42CINSULATION OVEN BACK (NON-ILLUSTRATED)
42HWCI 08068018
443051162 Frigidaire Oven Range Front Broiler Drawer Glide
45AWCI 3051724
45TUBE-POST LH
