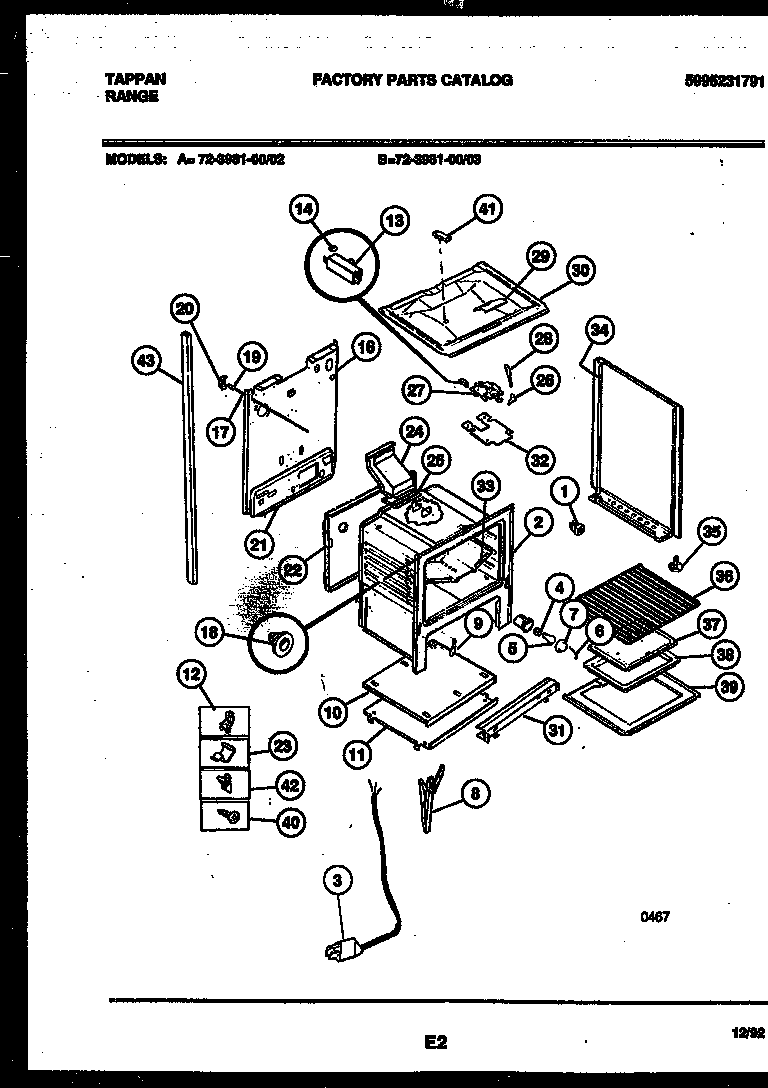

72-3981-00-02 07 – LOWER BODY PARTS

72-3981-00-02 07 – LOWER BODY PARTS

Written by

in

72-3981-00-02 07 – LOWER BODY PARTS

Products

PositionProduct
*81873WCI 08010570
*81873SHIELD-HEAT
*81873WCI 19100220009
*81873SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*81873ANTI-TIP KIT (NOT ILLUSTRATED)
1SPACER-BODYSIDE, (8)
35304534000 Frigidaire Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6RETAINER-GLASS
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10SHIELD-HEAT UPPER
11WCI 3131313
11AWCI 08067992
12WCI 08067754
13WCI 3131672
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
19SWITCH-OVEN LITE DOOR
20WCI 5303131289
21SHIELD, REAR WALL
22WCI 316014301
23CLIP-WIRE
24WCI 3131931
25316542102 Frigidaire Flue Gasket
25ASHIELD-LATCH (NON-ILLUSTRATED)
25BWCI 08013188
26WCI 3203218
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-OVN TOP
33WCI 3200836
34PNL-B/S-RH-WHITE
34WCI 5303269543
34AWCI 5303269545
34APNL-B/S-LH-WHITE
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39A316064600 Frigidaire Oven Support
39BTTM-OVEN
40316282700 Frigidaire Oven Screw
41BINSULATION OVEN BACK (NON-ILLUSTRATED)
41C08067973 Frigidaire 0 Insulation
41AWCI 08067961
41DINSULATION, OVEN TOP
41EINSULATION, OVEN WRAPPER
41WCI 3015371
41FWCI 08068018
423051162 Frigidaire Oven Range Front Broiler Drawer Glide
43WCI 5303208642
43ATUBE-POST LH
