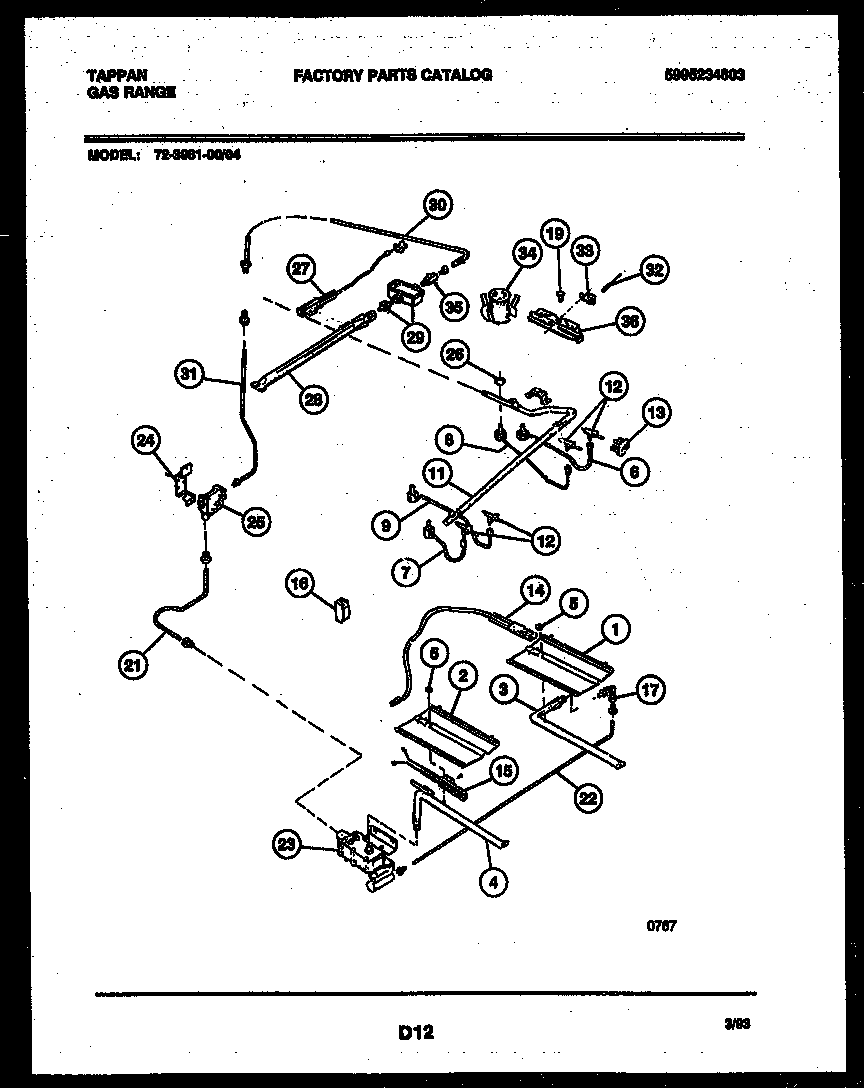

72-3981-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

72-3981-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-3981-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*83720RETAINER-OVEN SPUD
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
55303013272 Frigidaire Oven Nut
6WCI 5303283665
7WCI 5303283666
8WCI 5303283667
9WCI 5303283668
11WCI 5303271045
12VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
13SWITCH-IGNITER, (4)
145303935068 Frigidaire Flat Igniter
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17WCI 5303209315
19WCI 3051420
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
24316091600 Frigidaire Oven Bracket
255303935125 Frigidaire Pressure Regulator
26NUT, SPECIAL
27IGNITER-UPPER OVEN
28BURNER-UPPER OVEN
29WCI 3131623
30WCI 5303208645
31TUBE-ALUM 3/8 REG/MANIFOLD PIPE
32ELECTRODE
33WCI 3018617
34BURNER TOP (4)
35WCI 5303208636
35ATUBE-SPACER (NON-ILLUSTRATED)
36WCI 3206267
