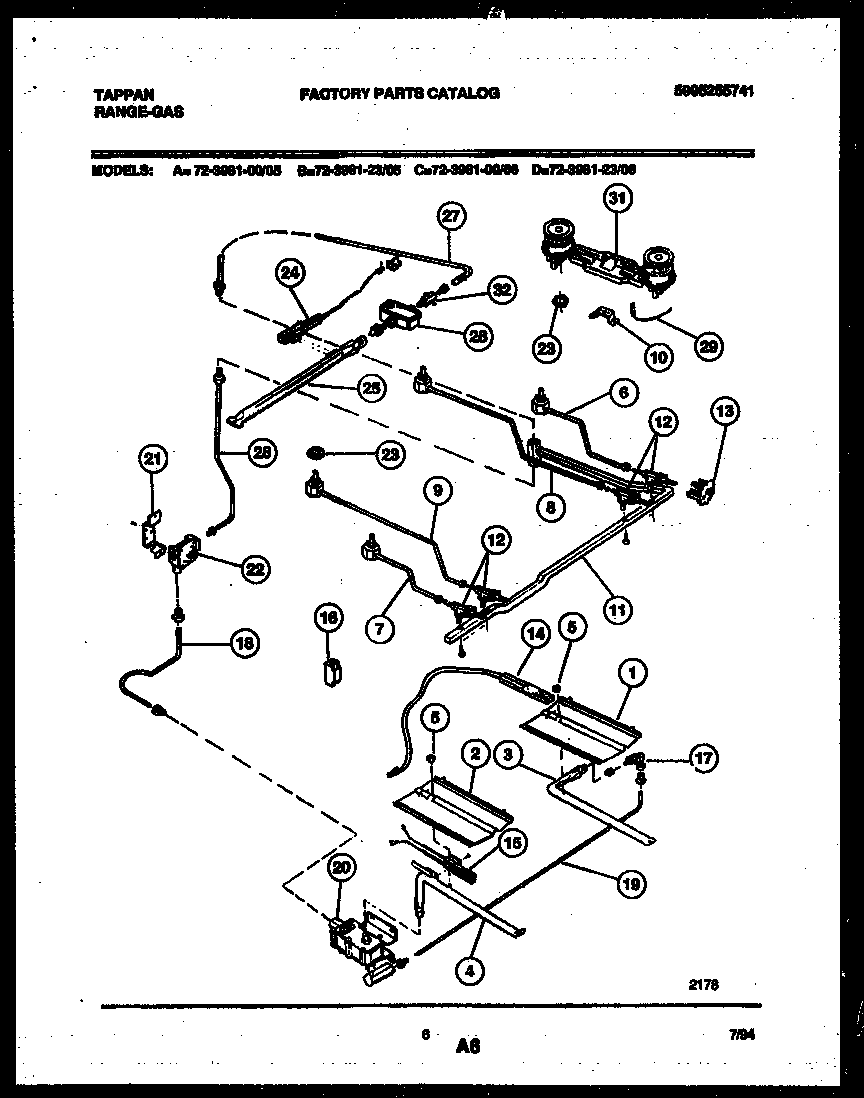

72-3981-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

72-3981-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-3981-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*10352RETAINER-OVEN SPUD
*10352WCI 3131621
*10352TUBE-SPACER (NON-ILLUSTRATED)
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
55303013272 Frigidaire Oven Nut
6TUBE-BURNER, RF
7TUBE-BURNER, LF
8TUBE-BURNER, RR
9TUBE-BURNER, LR
10BRACKET BURNER MTG
11WCI 316066200
12VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
13SWITCH-IGNITER, (4)
145303935068 Frigidaire Flat Igniter
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17WCI 5303208640
18WCI 316065003
19WCI 3160625002
205303208499 Frigidaire Safety Gas Valve
21316091600 Frigidaire Oven Bracket
225303935125 Frigidaire Pressure Regulator
23NUT, SPECIAL
24IGNITER-UPPER OVEN
25BURNER-UPPER OVEN
26WCI 3131623
27TUBING-VALVE
28WCI 316065005
29IGNITER-TOP BURNER, BASE, (2)
31WCI 316057100
32WCI 5303208636
