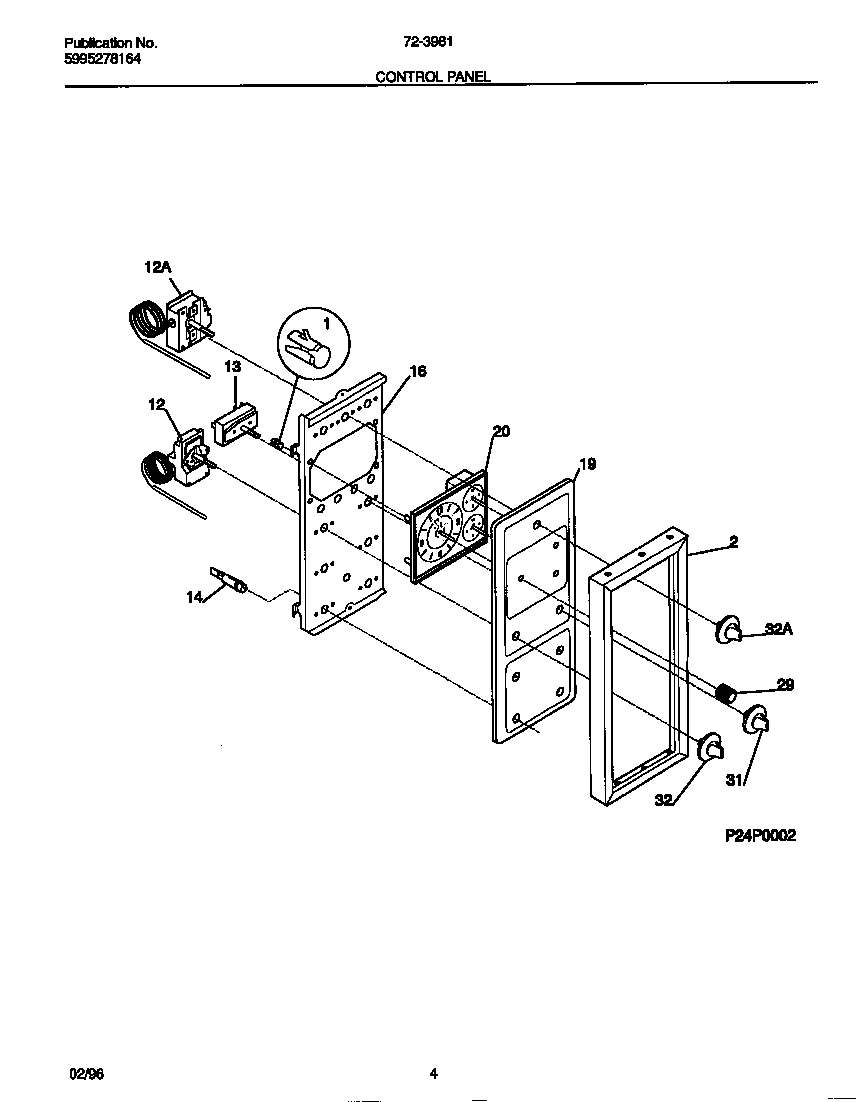

72-3981-00-08 03 – CONTROL PANEL

72-3981-00-08 03 – CONTROL PANEL

Written by

in

72-3981-00-08 03 – CONTROL PANEL

Products

PositionProduct
*95443Screw,cup pt ,8-18 x 0.375 ,chrome
*95444WCI 5308010401
1FSTNR-CLOCK
2TRIM-FRAME
12WCI 5303270076
12THERMOSTAT-OVEN
13SWITCH SELECTOR 5 POS
14WCI 5308037896
16PLATE, INSTRUMENT MTG
19PANEL-CONTROL, GLASS
20CLOCK/TIMER, ANALOG 3 STEM
29WCI 316029000
31KNOB-SELECTOR
32WCI 5303284804
32KNOB-THERMOSTAT
