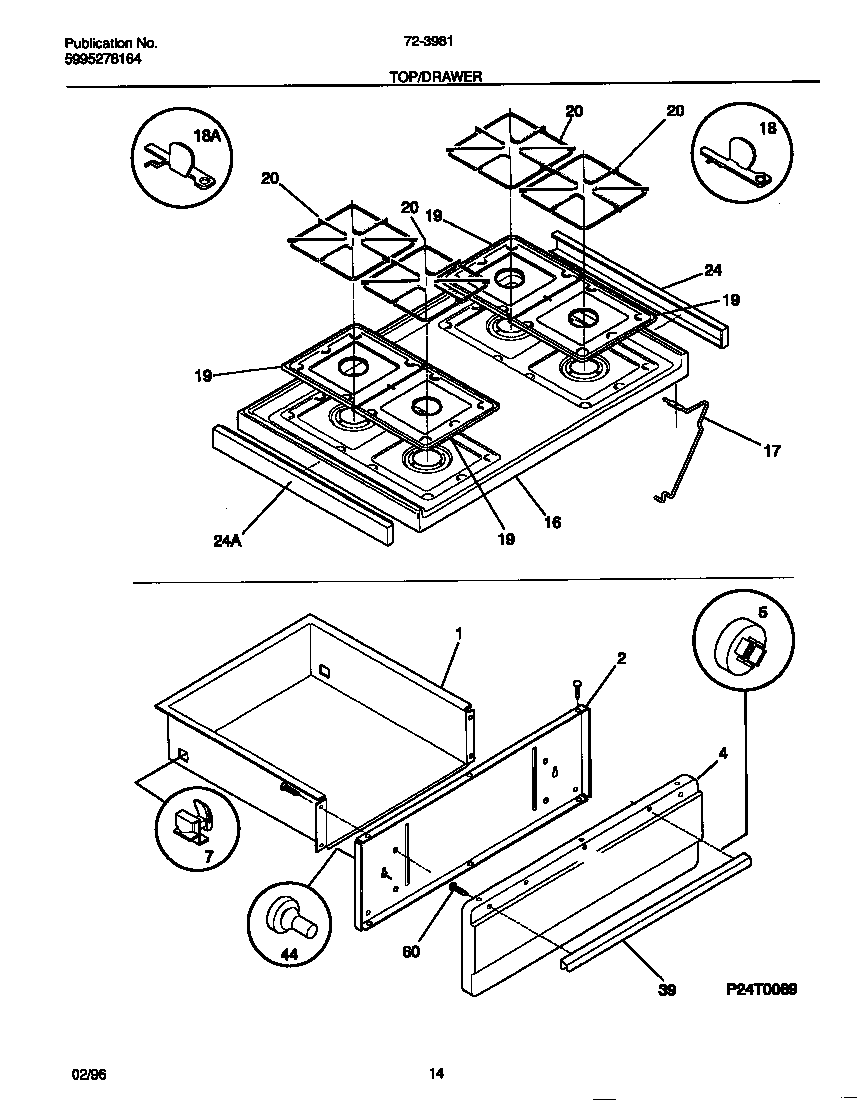

72-3981-00-08 07 – TOP/DRAWER

72-3981-00-08 07 – TOP/DRAWER

Written by

in

72-3981-00-08 07 – TOP/DRAWER

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
4SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4PANEL-BROILER, WHITE
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
16WCI 3131351
17WCI 316066900
18BRACKET-HINGE,MAIN TOP RH
18BRACKET-HINGE,MAIN TOP LH
19WCI 316021203
20WCI 5303272852
24WCI 3051355
24WCI 3051354
39HANDLE
443131903 Frigidaire Door/Drawer Bumper
60SCREW-DRAWER HANDLE, 8 TRUSS HEAD, 10-16 X 1/2
