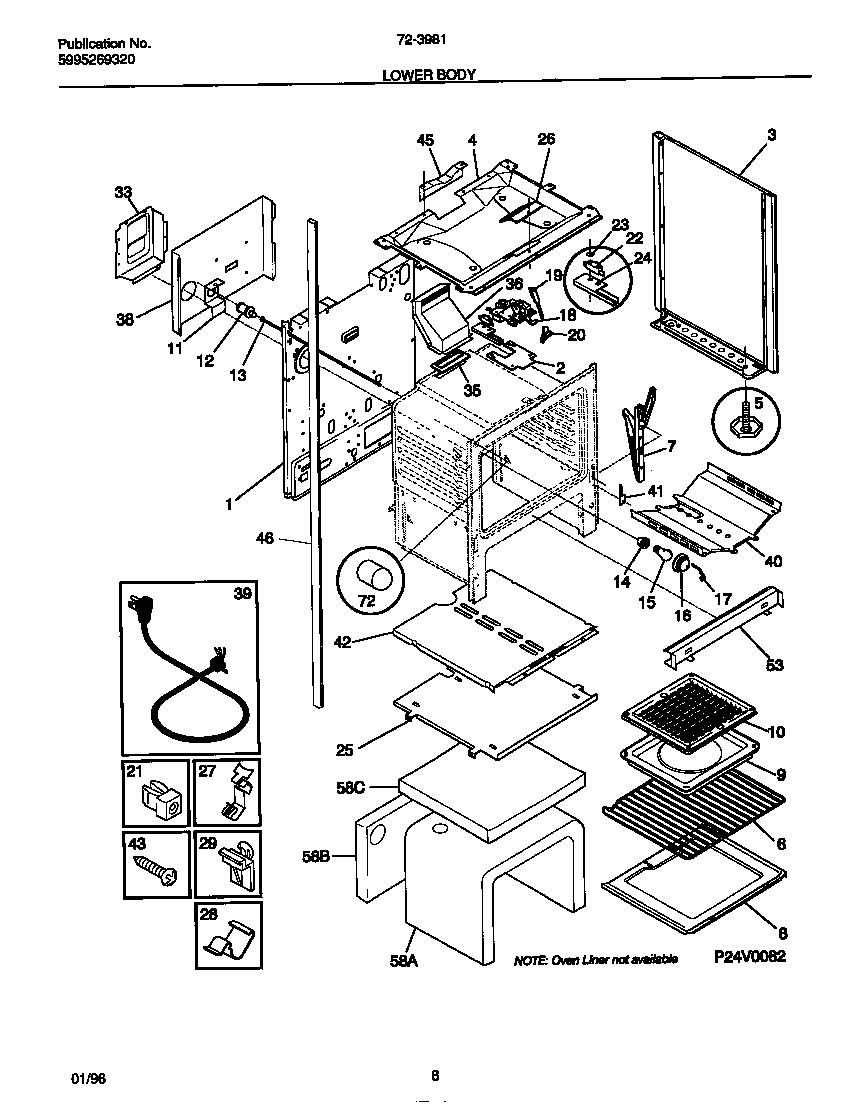

72-3981-23-07 05 – LOWER BODY

72-3981-23-07 05 – LOWER BODY

Written by

in

72-3981-23-07 05 – LOWER BODY

Products

PositionProduct
*05608WCI 3131691
*05606316021105 Frigidaire Oven Screw
*05607SCREW-10-32 SHOULDER SPECIAL (2)
*05605316539800 Frigidaire Oven Retainer
1WCI 316029410
2SHIELD-OVN TOP
3WCI 316081007
3ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
3WCI 316081006
3BWCI 08067992
4WCI 3011597
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5ASCREW-LEVELING
6316067902 Frigidaire Oven Rack
7WCI 316007002
8APANEL-OVEN BOTTOM
8B316064600 Frigidaire Oven Support
9PAN-BROILER
10WCI 5303131356
11WCI 5303131289
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18AWCI 5303015453
18BSHIELD-LATCH (NON-ILLUSTRATED)
19WCI 5303131357
20AWCI 3203218
20BWCI 08013188
21SPACER-BODYSIDE, (8)
22ASWITCH-LATCH
22BSTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3131313
26WCI 08067757
27WCI 08067754
28CLIP-WIRE
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33SHIELD, REAR WALL
35316542102 Frigidaire Flue Gasket
36WCI 3131931
38WCI 316014301
39A5304534000 Frigidaire Cord
39BWCI 08067961
40AWCI 3200836
40BSCREW-HEAT SHIELD, HD SHLDR SQDR, 8-18 X 1/2
41WCI 3131570
42SHIELD-HEAT UPPER
43316282700 Frigidaire Oven Screw
45WCI 08068018
46AWCI 5303208642
46BTUBE-POST LH
53B08067973 Frigidaire 0 Insulation
53ASHIELD-FRONT
58INSULATION, OVEN WRAPPER
58INSULATION, OVEN TOP
58WCI 316054200
72COVER-LIGHT/SWITCH ROD
