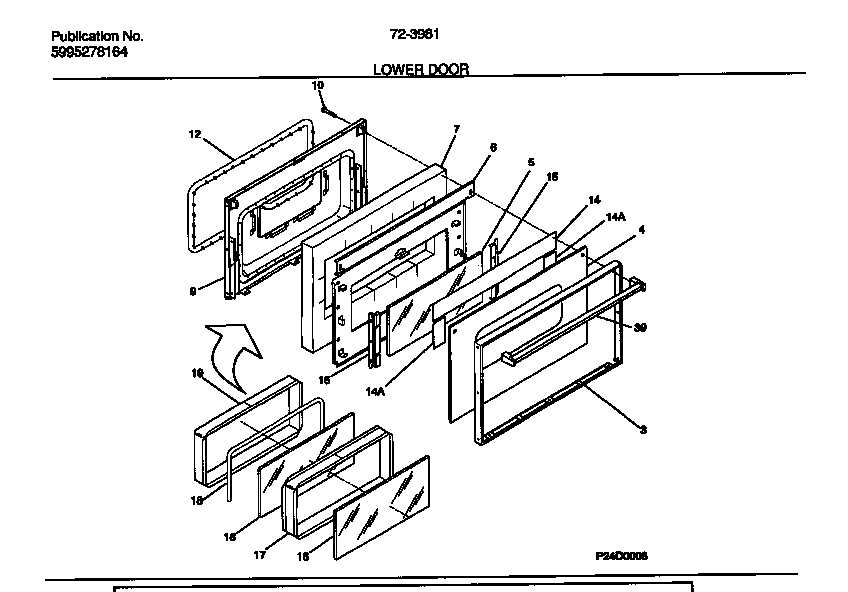

72-3981-23-08 08 – LOWER DOORadmin2025-04-26T08:49:14+00:0072-3981-23-08 08 – LOWER DOOR
Products
| Position | Product |
|---|
| *95463 | RIVET-POP, WARING-PLATE |
| *95464 | WCI 316065300 |
| *95465 | SCREW, CR PAN HD SEMS, 8-32BP X 1.00 |
| *95466 | 5303285179 Frigidaire Oven Door Screw |
| 3 | WCI 316067802 |
| 4 | GLASS-OVEN DOOR, BLACK, OUTER |
| 5 | GLASS-OVEN DOOR, INNER |
| 6 | SHIELD-INSULATION |
| 7 | WCI 316076400 |
| 9 | WCI 316066603 |
| 10 | WCI 5303280308 |
| 12 | 5303131601 Frigidaire Oven Seal |
| 14 | 5303208655 Frigidaire Reflector Assembly |
| 14 | REFLECTOR, ALUMINUM FOIL |
| 15 | BRACKET-GLASS MTG |
| 16 | GLASS-OVEN DOOR, HEAT BARRIER, (2) |
| 17 | WCI 5303209517 |
| 18 | SEAL-ROPE, 0.25 DIA |
| 19 | WCI 316067600 |
| 39 | HANDLE |
