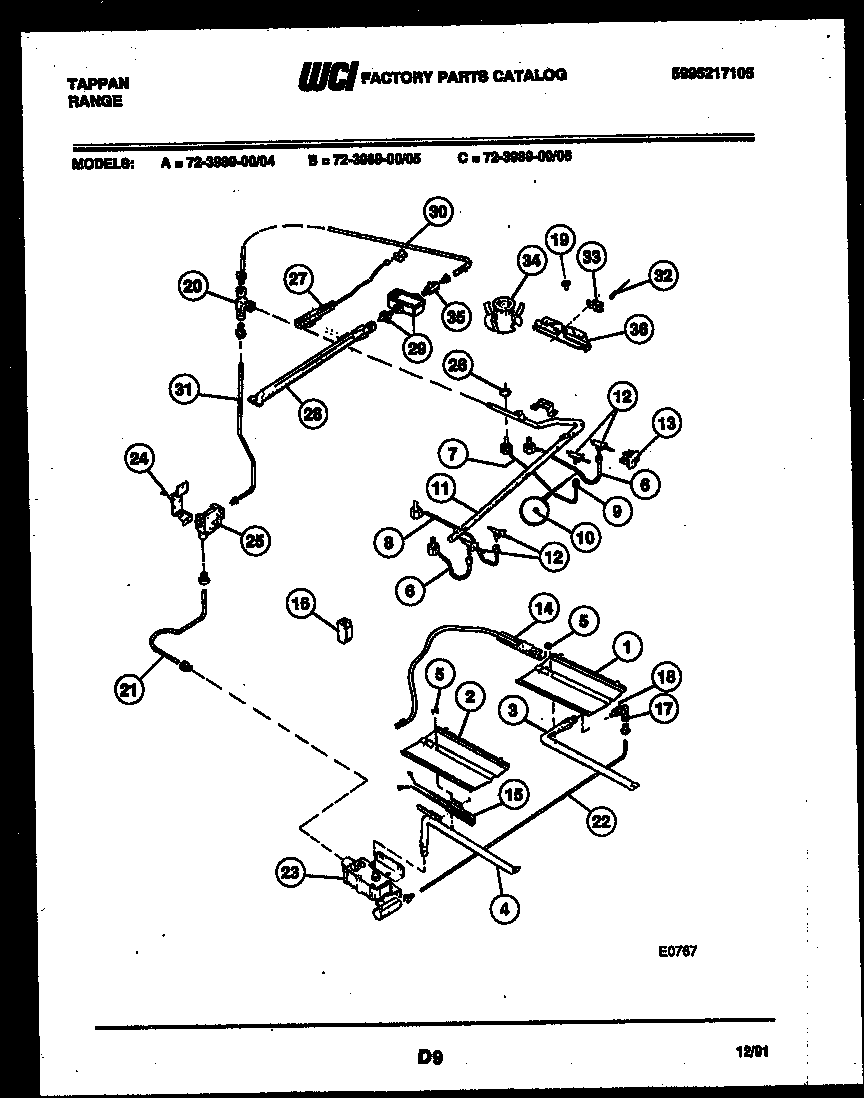

72-3989-00-04 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*61119	RETAINER-OVEN SPUD
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
6	BURNER TUBE-RF & LF
7	WCI 5303011569
8	WCI 5303011570
9	NUT COMPRESSN (4)
10	FERRULE (4)
11	WCI 3131440
12	VALVE 3 POS (4)
13	316035200 Frigidaire Ignition Switch
14	5303935068 Frigidaire Flat Igniter
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17	WCI 5303209315
18	5303013272 Frigidaire Oven Nut
19	WCI 3051420
20	FITTING-TEE
21	TUBE-VALVE TO REGUL
22	TUBE-VALVE TO MIXER ELBOW
23	5303208499 Frigidaire Safety Gas Valve
24	316091600 Frigidaire Oven Bracket
25	5303935125 Frigidaire Pressure Regulator
26	NUT, SPECIAL
27	IGNITER-UPPER OVEN
28	BURNER-UPPER OVEN
29	WCI 3131623
30	WCI 5303208645
31	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
32	IGNITER-TOP BURNER (4)
33	WCI 3018617
34	BURNER TOP (4)
35A	TUBE-SPACER (NON-ILLUSTRATED)
35	WCI 5303208636
36	WCI 3206267
