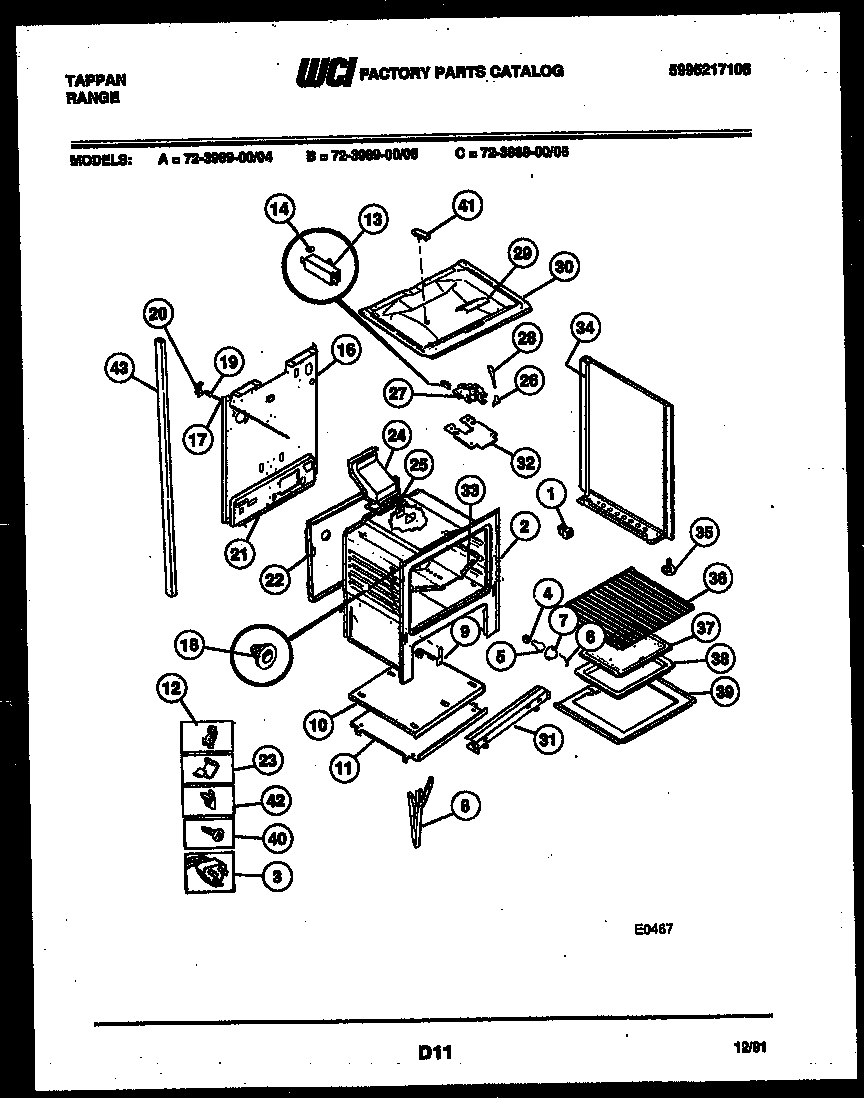

72-3989-00-06 07 – LOWER BODY PARTS

Products

Position	Product
*61128	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*61128	SHIELD-HEAT
*61129	WCI 19100220009
*61129	WCI 08010570
*61129	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	5304534000 Frigidaire Cord
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
8	WCI 316007002
9	WCI 3131570
10	SHIELD-HEAT UPPER
11	WCI 3131313
11A	WCI 08067992
12	WCI 08067754
13	WCI 3131672
14	FSTNR-PUSH ON
14A	STUD SPACER (2) (NON-ILLUSTRATED)
16	WCI 3203082
17	WCI 5303209316
18	3131903 Frigidaire Door/Drawer Bumper
19	SWITCH-OVEN LITE DOOR
20	WCI 5303131289
21	WCI 5303269502
22	WCI 08067991
23	CLIP-WIRE
24	WCI 3131931
25	316542102 Frigidaire Flue Gasket
25A	SHIELD-LATCH (NON-ILLUSTRATED)
25B	WCI 08013188
26	WCI 3203218
27	WCI 5303015453
28	WCI 5303131357
29	WCI 08067757
30	WCI 3011597
31	SHIELD-FRONT
32	SHIELD-OVN TOP
33	WCI 3200836
34	WCI 5303269543
34	PNL-B/S-RH-WHITE
34A	PNL-B/S-LH-WHITE
34A	WCI 5303269545
34	PNL-B/S RH-WHEAT
34A	PNL-B/S LH-WHEAT
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 5303131356
38	PAN-BROILER
39A	316064600 Frigidaire Oven Support
39	BTTM-OVEN
40	316282700 Frigidaire Oven Screw
41C	08067973 Frigidaire 0 Insulation
41E	INSULATION, OVEN WRAPPER
41D	INSULATION, OVEN TOP
41	WCI 3015371
41A	WCI 08067961
41B	INSULATION OVEN BACK (NON-ILLUSTRATED)
41F	WCI 08068018
42	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
43A	TUBE-POST LH
43	WCI 5303208642
