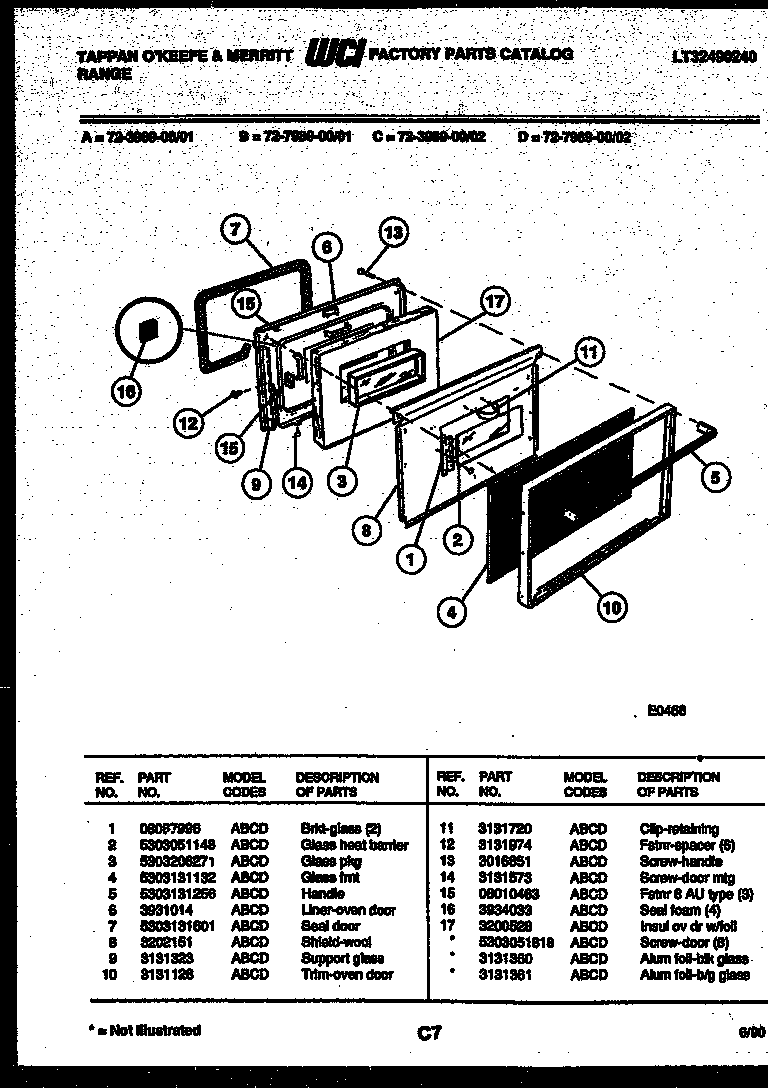

72-3989-23-01 05 – LOWER OVEN DOOR PARTS

72-3989-23-01 05 – LOWER OVEN DOOR PARTS

Written by

in

72-3989-23-01 05 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*323535303300265 Frigidaire Oven Screw
*323535303208655 Frigidaire Reflector Assembly
*32353ALUM FOIL-B/G GLASS
1WCI 08067996
2WCI 5303051148
3GLASS PKG
4GLASS FRNT
5HANDLE
6WCI 3931014
75303131601 Frigidaire Oven Seal
8WCI 3202151
9SUPPORT, GLASS
10WCI 3131128
11CLIP-RETAINING
12FSTNR. SPACER (6)
13WCI 3016851
14SCREW DOOR MTG
15WCI 08010463
16SEAL, FOAM (4)
17INSUL OV DR W/ FOIL
