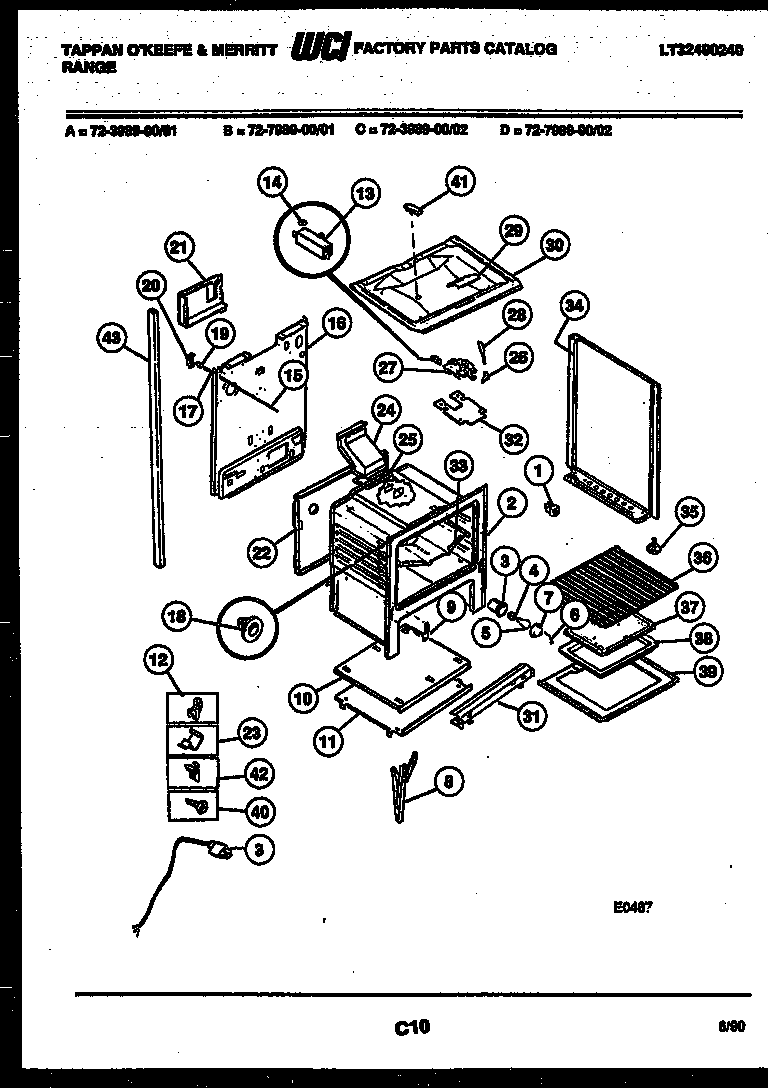

72-3989-23-02 07 – LOWER BODY PARTS

Products

Position	Product
*32368	SHIELD-HEAT
*32369	ANTI-TIP KIT (NOT ILLUSTRATED)
*32369	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	5304534000 Frigidaire Cord
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11	WCI 3131313
11A	WCI 655T437F01
12	WCI 08067754
13	WCI 3131672
14	FSTNR-PUSH ON
14A	STUD SPACER (2) (NON-ILLUSTRATED)
15	WCI 3051251
16	WCI 3203082
17	WCI 3013814
18	3131903 Frigidaire Door/Drawer Bumper
19	SWITCH-OVEN LITE DOOR
20	WCI 5303131289
21	WCI 3131590
22	WCI 08067991
23	CLIP-WIRE
24	WCI 3131931
25A	SHIELD-LATCH (NON-ILLUSTRATED)
25	316542102 Frigidaire Flue Gasket
25B	WCI 08013188
26	WCI 5308010597
27	WCI 5303015453
28	WCI 5303131357
29	WCI 08067757
30	WCI 3011597
31	SHIELD-FRONT
32	SHIELD-OVN TOP
33	WCI 3200836
34	PNL-BODYSIDE RH-ALMOND
34A	PNL-BODYSIDE LH-ALMOND
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 5303131356
38	PAN-BROILER
39A	316064600 Frigidaire Oven Support
39	BTTM-OVEN
40	316282700 Frigidaire Oven Screw
41B	INSULATION OVEN BACK (NON-ILLUSTRATED)
41C	08067973 Frigidaire 0 Insulation
41	WCI 3015371
41D	WCI 3012943
41F	WCI 655T434F01
41E	INSULATION, OVEN WRAPPER
41A	WCI 08067961
42	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
43	WCI 3051723
43A	WCI 3051724
