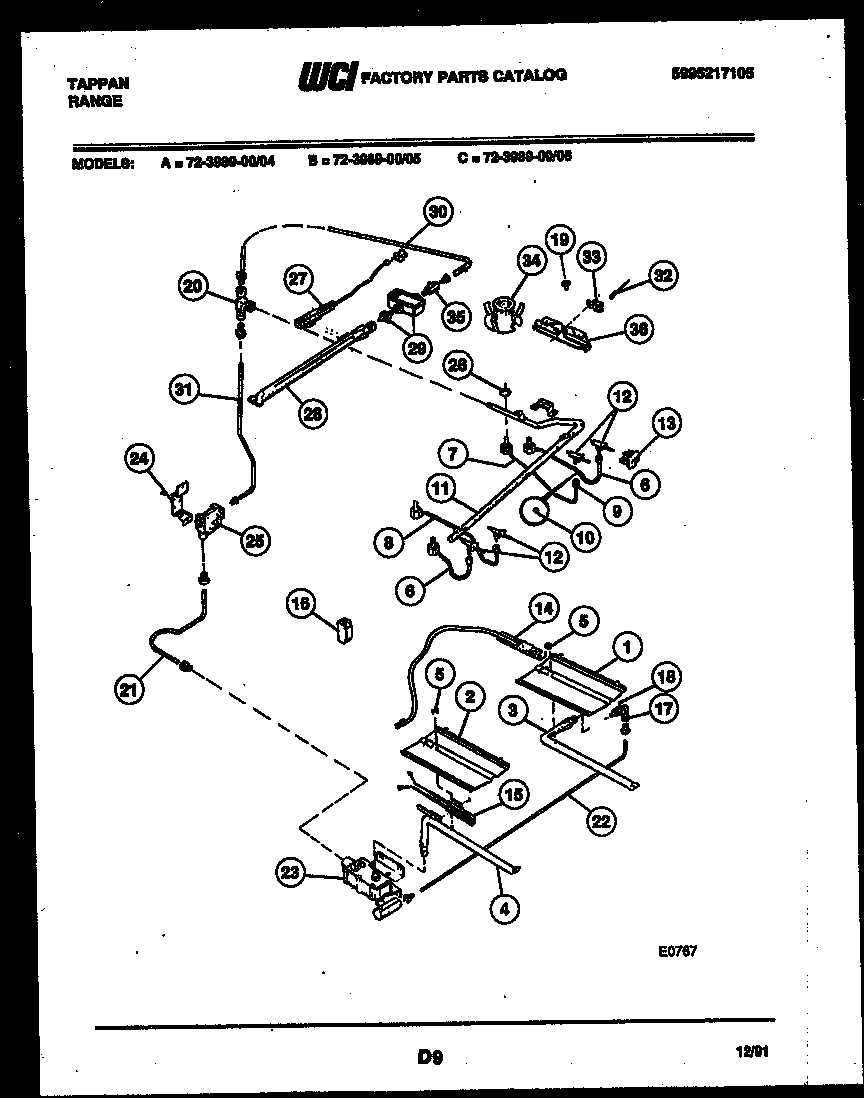

72-3989-66-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*61119	RETAINER-OVEN SPUD
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
6	TUBE-BURNER, LF
6	TUBE-BURNER, RF
7	TUBE-BURNER, RR
8	TUBE-BURNER, LR
11	WCI 5303271045
12	VALVE TOP-3 POS
13	316035200 Frigidaire Ignition Switch
14	5303935068 Frigidaire Flat Igniter
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17	WCI 5303209315
18	5303013272 Frigidaire Oven Nut
19	WCI 3051420
21	TUBE-VALVE TO REGUL
22	TUBE-VALVE TO MIXER ELBOW
23	5303208499 Frigidaire Safety Gas Valve
24	316091600 Frigidaire Oven Bracket
25	5303935125 Frigidaire Pressure Regulator
26	NUT, SPECIAL
27	IGNITER-UPPER OVEN
28	BURNER-UPPER OVEN
29	WCI 3131623
30	WCI 5303208645
31	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
32	IGNITER-TOP BURNER (4)
33	WCI 3018617
34	BURNER TOP (4)
35A	TUBE-SPACER (NON-ILLUSTRATED)
35	WCI 5303208636
36	WCI 3206267
