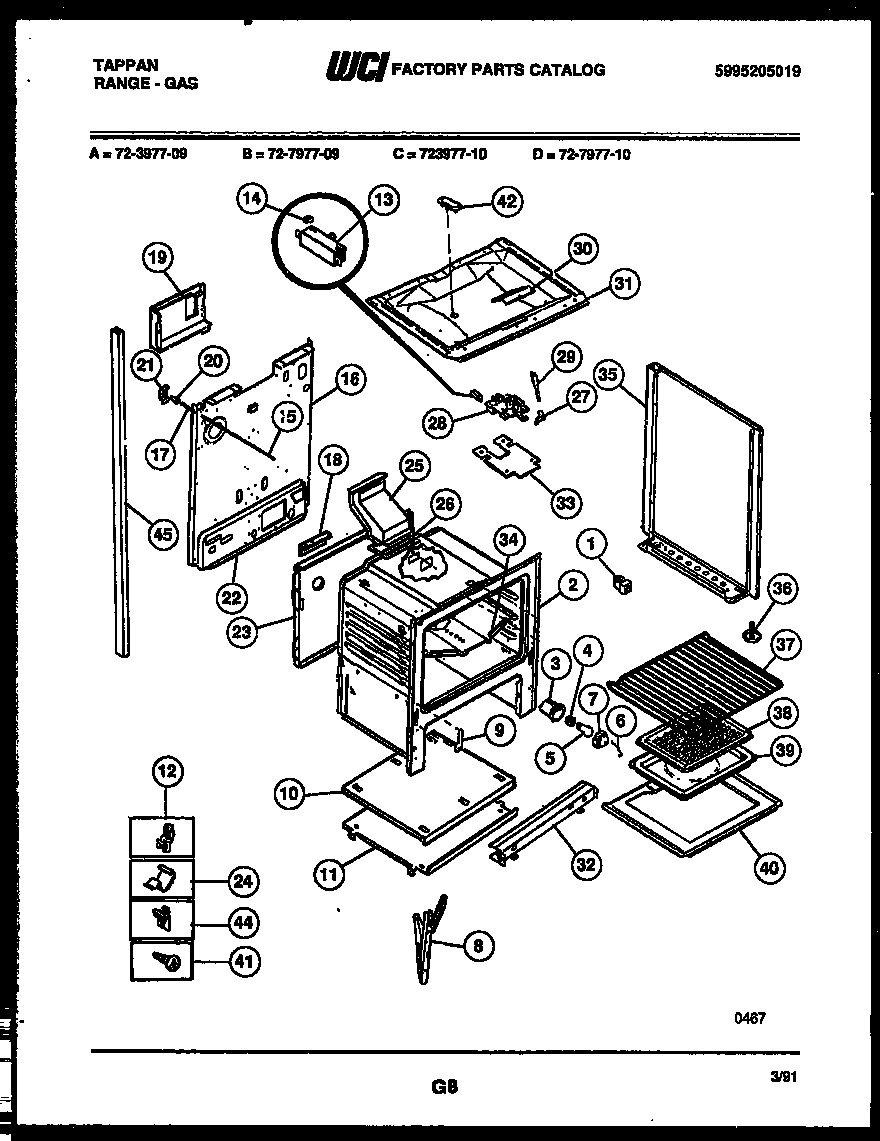

72-7977-00-09 07 – LOWER BODY PARTS

Products

Position	Product
*23677	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*23677	WCI 191S018F197
*23677	SHIELD-HEAT
*23677	ANTI-TIP KIT (NOT ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WCI 3131104
7	WCI 08067765
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11A	WCI 08067992
11	WCI 3131313
12	WCI 08067754
13	WCI 3131672
14	FSTNR-PUSH ON
14A	STUD SPACER (2) (NON-ILLUSTRATED)
15	WCI 08067758
15A	5304534000 Frigidaire Cord
16	WCI 3131567
17	WCI 5303209316
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	WCI 5303131289
22	WCI 3131590
23	WCI 08067991
24	CLIP-WIRE
25	WCI 3131931
26B	WCI 08013188
26	316542102 Frigidaire Flue Gasket
26A	SHIELD-LATCH (NON-ILLUSTRATED)
27	WCI 3203218
28	WCI 5303015453
29	WCI 5303131357
30	WCI 08067757
31	WCI 3011597
32	SHIELD-FRONT
33	SHIELD-OVN TOP
34	WCI 3200836
35	PNL-B/S-LH-WHITE
35A	PNL-B/S-RH-WHITE
36	SCREW-LEVELING
37	316067902 Frigidaire Oven Rack
38	WCI 5303131356
39	PAN-BROILER
40	BTTM-OVEN
40A	316064600 Frigidaire Oven Support
40B	3131903 Frigidaire Door/Drawer Bumper
41	316282700 Frigidaire Oven Screw
42E	INSULATION, OVEN TOP
42	WCI 3015371
42A	WCI 08067961
42H	WCI 08068018
42B	INSUL OVEN BACK (NON-ILLUSTRATED)
42F	INSUL-WOOL SPLASHER
42D	08067973 Frigidaire 0 Insulation
44	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
45	TUBE-POST LH
45A	WCI 3051724
