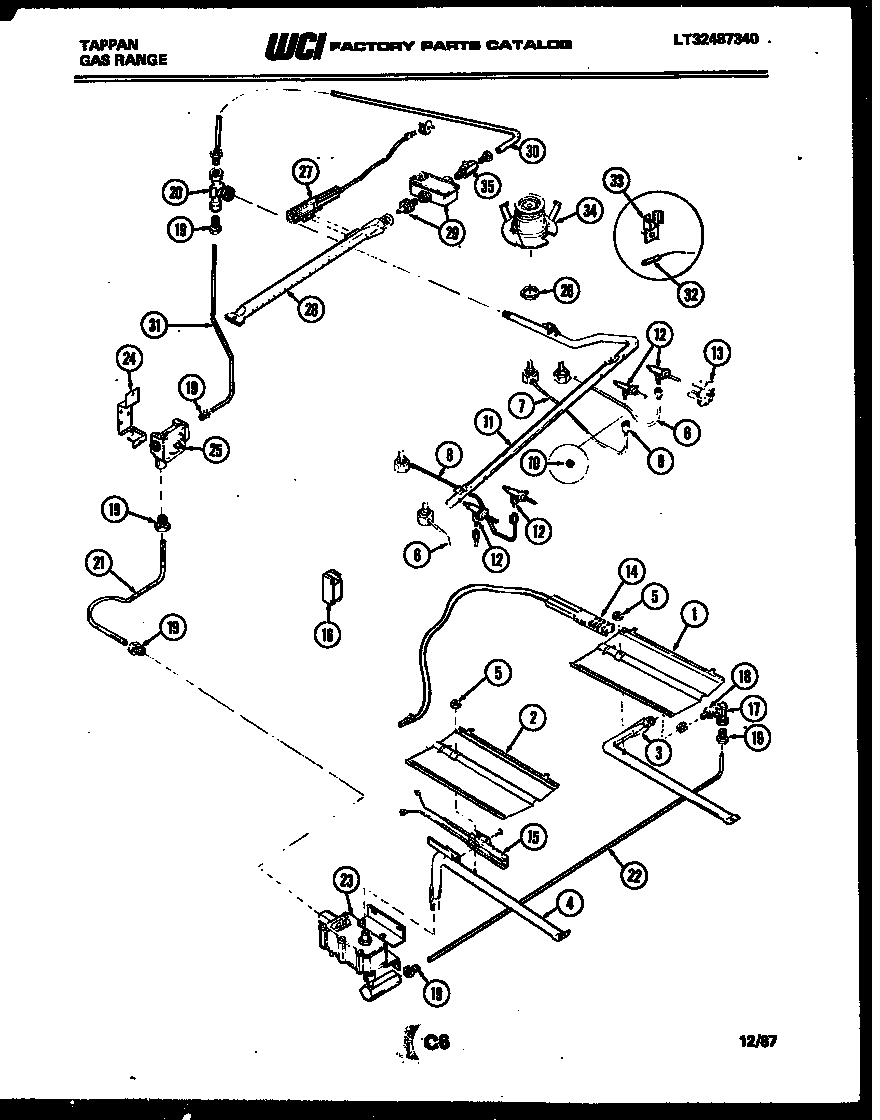

72-7977-66-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*91181TUBE-SPACER (NON-ILLUSTRATED)
*91180SPACER-BAFFLE (2) (NON-ILLUSTRATED)
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
55303013272 Frigidaire Oven Nut
6BURNER TUBE-RF & LF
7WCI 079T003H02
8WCI 079T003H03
9NUT COMPRESSN (4)
10WCI 247T074P01
11WCI 493T055P03
12WCI 3131126
13316035200 Frigidaire Ignition Switch
145303935068 Frigidaire Flat Igniter
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165304505695 Frigidaire Oven Module
17WCI 455T008P02
18NUT
19FITTING-LOXIT (8)
20FITTING-TEE
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
24WCI 3131130
255303935125 Frigidaire Pressure Regulator
26NUT SPECIAL
27IGNITER-UPPER OVEN
28WCI 079T026P01
29WCI 3131623
30WCI 3131626
31TUBE-REGUL TEE
32IGNITER-TOP BURNR (4)
33RETAINER IGNITER
34WCI 079T032S02
35WCI 3131624
