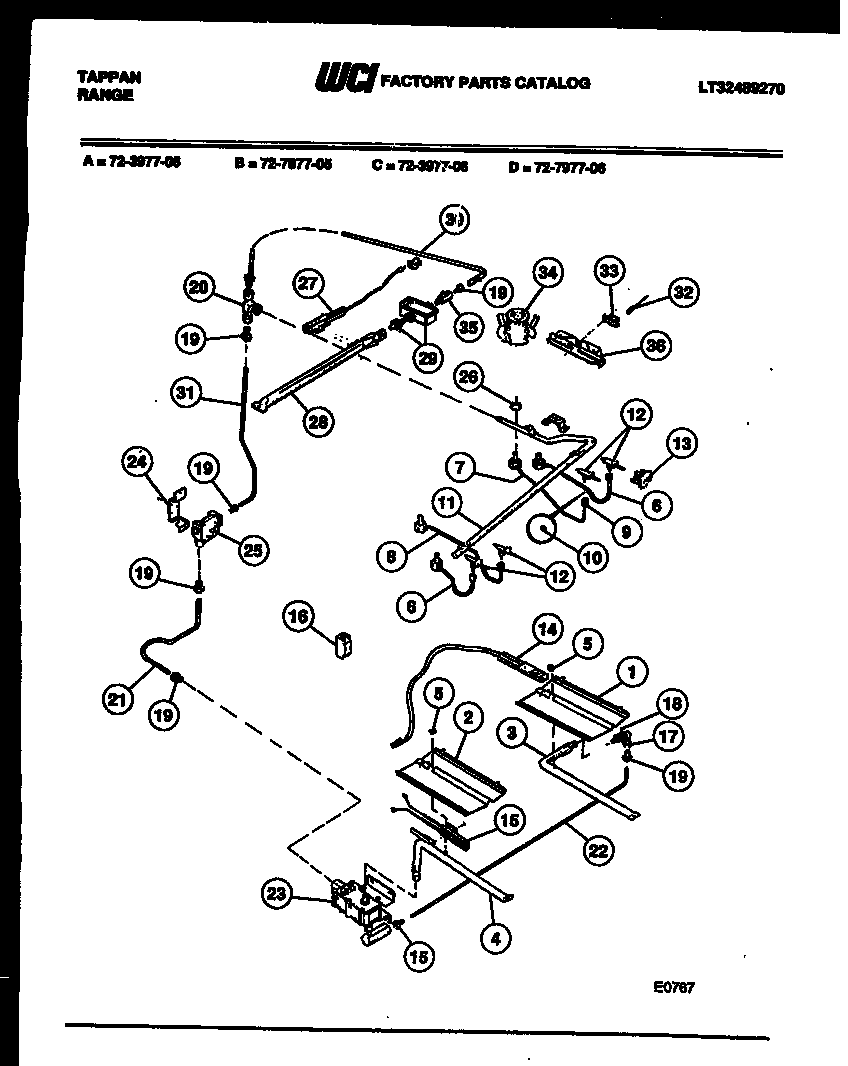

72-7977-66-06 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*15133WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
55303013272 Frigidaire Oven Nut
6BURNER TUBE-RF & LF
7WCI 3011569
8WCI 3011570
9NUT COMPRESSN (4)
10WCI 247T074P01
11WCI 493T055P03
12WCI 3017846
13316035200 Frigidaire Ignition Switch
145303935068 Frigidaire Flat Igniter
15IGNITER-OVEN
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17WCI 455T008P02
18NUT
19FITTING-LOXIT (8)
20FITTING-TEE
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
24316091600 Frigidaire Oven Bracket
255303935125 Frigidaire Pressure Regulator
26NUT SPECIAL
27IGNITER-UPPER OVEN
28WCI 079T026P01
29WCI 3131623
30WCI 3131626
31TUBE-REGUL TEE
32IGNITER-TOP BURNER (4)
33WCI 3018617
34WCI 079T032S02
35WCI 3131624
35BTUBE-SPACER (NON-ILLUSTRATED)
36WCI 136T355W03
