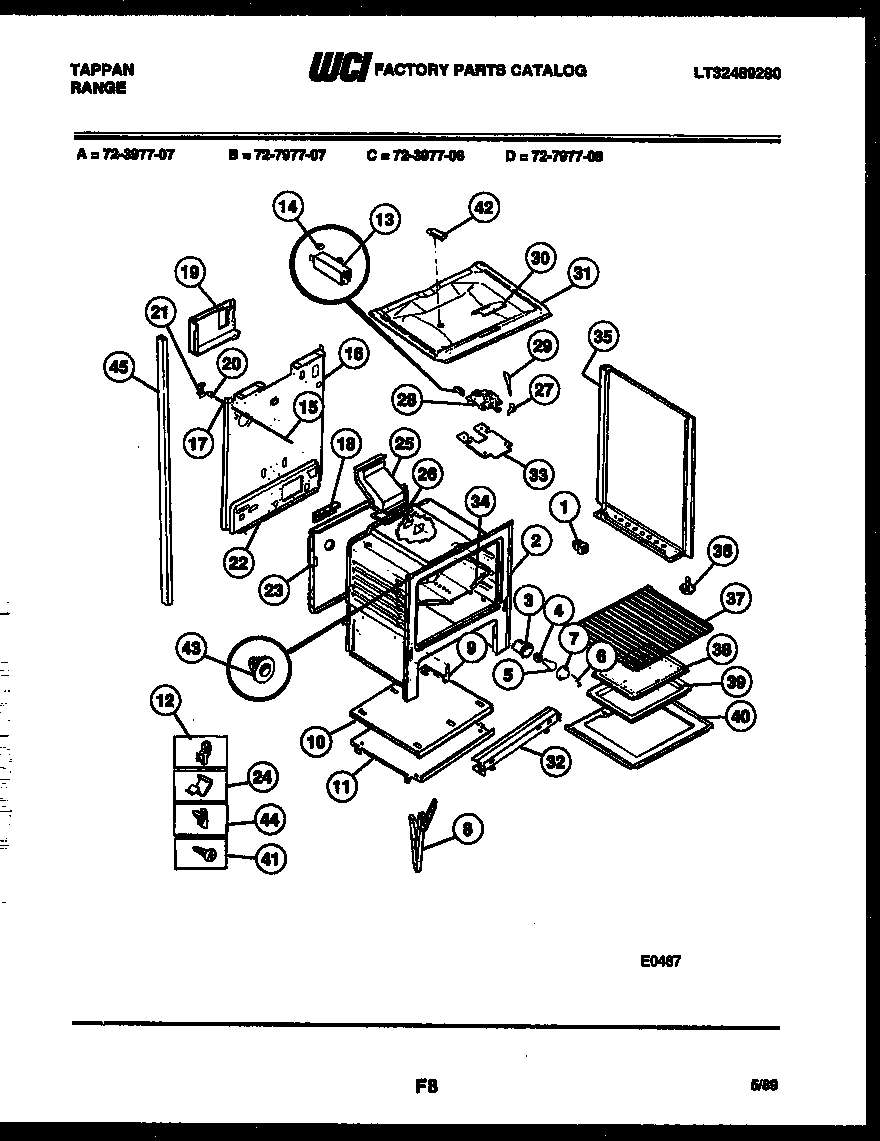

72-7977-66-07 07 – LOWER BODY PARTS

72-7977-66-07 07 – LOWER BODY PARTS

Written by

in

72-7977-66-07 07 – LOWER BODY PARTS

Products

PositionProduct
*23531SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*235315300809968 Frigidaire Dishwasher P-1 Washer
*23531WCI 3131630
*23531WASHER-BLACK
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
8WCI 316007002
9WCI 3131570
10WCI 3131951
11WCI 3131313
11AWCI 655T437F01
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15A5304534000 Frigidaire Cord
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131590
23WCI 3131316
24CLIP, WIRE
25WCI 3131931
26BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
26ASHIELD-LATCH (NON-ILLUSTRATED)
26316542102 Frigidaire Flue Gasket
27WCI 358T158S02
28WCI 3015453
29WCI 3131357
30WCI 3131101
31WCI 095T030F02-95
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3200836
35APNL B/S-RH (WHEAT)
35PNL B/S-LH (WHEAT)
36WCI 636M004P01
37316067902 Frigidaire Oven Rack
38WCI 3131356
39PAN, BROILER
40WCI 058T036F03-86
40A316064600 Frigidaire Oven Support
40B3131903 Frigidaire Door/Drawer Bumper
41316282700 Frigidaire Oven Screw
42COVER-BURNER BOX
43BUTTON-REMOTE SW
43EINSULATION, OVEN WRAPPER
43DINSULATION, OVEN TOP
43FWCI 655T434F01
43AFSTNR-POWER CORD (NON-ILLUSTRATED)
43C08067973 Frigidaire 0 Insulation
43BINSUL OVEN BACK (NON-ILLUSTRATED)
443051162 Frigidaire Oven Range Front Broiler Drawer Glide
45AWCI 3051724
45WCI 3051723
