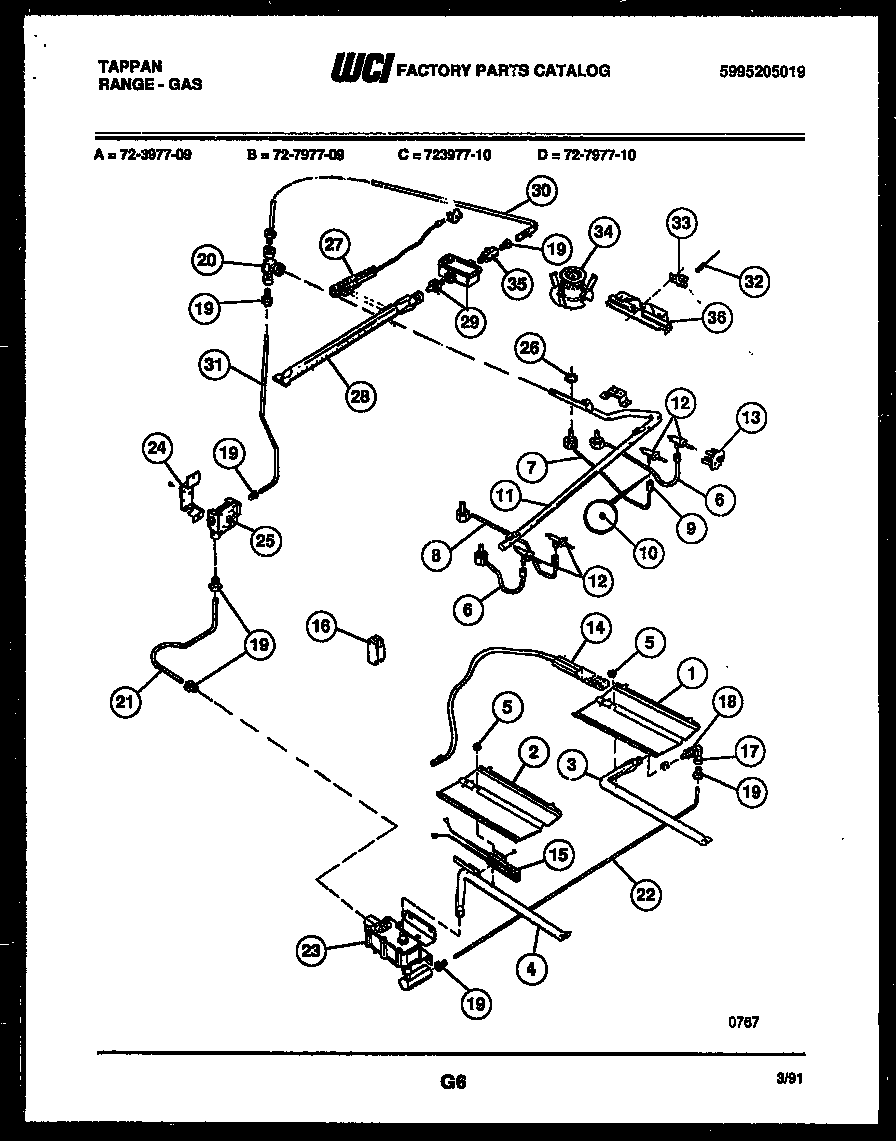

72-7977-66-10 06 – BURNER, MANIFOLD AND GAS CONTROL

72-7977-66-10 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

72-7977-66-10 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*23669WCI 3051420
1WCI 5303210379
2BAFFLE-OVN BURNER
3WCI 08067935
4WCI 3131290
55303013272 Frigidaire Oven Nut
6BURNER TUBE-RF & LF
7WCI 5303011569
8WCI 5303011570
9NUT COMPRESSN (4)
10FERRULE (4)
11WCI 3018861
12VALVE 3 POS (4)
13316035200 Frigidaire Ignition Switch
145303935068 Frigidaire Flat Igniter
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
17WCI 08067979
18NUT
19FITTING-LOXIT (8)
20FITTING-TEE
21TUBE-VALVE TO REGUL
22TUBE-VALVE TO MIXER ELBOW
235303208499 Frigidaire Safety Gas Valve
24316091600 Frigidaire Oven Bracket
255303935125 Frigidaire Pressure Regulator
26NUT, SPECIAL
27IGNITER-UPPER OVEN
28BURNER-UPPER OVEN
29WCI 3131623
30WCI 3131626
31TUBE-REGUL TEE
32IGNITER-TOP BURNER (4)
33WCI 3018617
34BURNER TOP (4)
35WCI 3131624
36WCI 3206267
