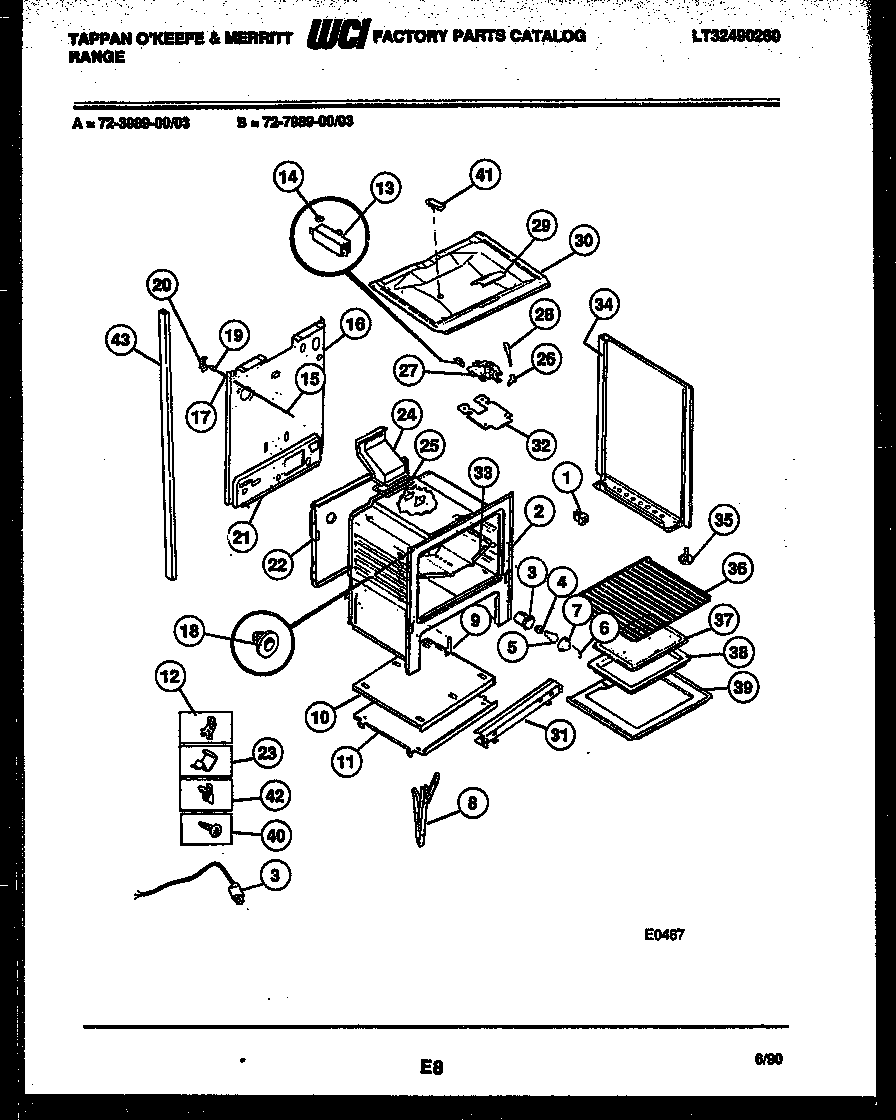

72-7989-00-03 07 – LOWER BODY PARTS

72-7989-00-03 07 – LOWER BODY PARTS

Written by

in

72-7989-00-03 07 – LOWER BODY PARTS

Products

PositionProduct
*37940ANTI-TIP KIT (NOT ILLUSTRATED)
*37940SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*37940SHIELD-HEAT
1SPACER-BODYSIDE, (8)
35304534000 Frigidaire Cord
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 655T437F01
11WCI 3131313
12WCI 08067754
13WCI 3131672
14ASTUD SPACER (2) (NON-ILLUSTRATED)
14FSTNR-PUSH ON
15WCI 3051251
16WCI 3203082
17WCI 5303209316
183131903 Frigidaire Door/Drawer Bumper
19SWITCH-OVEN LITE DOOR
20WCI 5303131289
21WCI 3131590
22WCI 08067991
23CLIP-WIRE
24WCI 3131931
25BWCI 08013188
25ASHIELD-LATCH (NON-ILLUSTRATED)
25316542102 Frigidaire Flue Gasket
26WCI 5308010597
27WCI 5303015453
28WCI 5303131357
29WCI 08067757
30WCI 3011597
31SHIELD-FRONT
32SHIELD-OVN TOP
33WCI 3200836
34APNL-BODYSIDE LH-ALMOND
34PNL-BODYSIDE RH-ALMOND
34PNL-BODYSIDE RH-WHITE
34APNL-BODYSIDE LH-WHITE
34APNL B/S-RH (WHEAT)
34PNL B/S-LH (WHEAT)
35SCREW-LEVELING
36316067902 Frigidaire Oven Rack
37WCI 5303131356
38PAN-BROILER
39BTTM-OVEN
39A316064600 Frigidaire Oven Support
40316282700 Frigidaire Oven Screw
41AWCI 08067961
41DWCI 3012943
41C08067973 Frigidaire 0 Insulation
41EINSULATION, OVEN WRAPPER
41BINSULATION OVEN BACK (NON-ILLUSTRATED)
41FWCI 655T434F01
41WCI 3015371
423051162 Frigidaire Oven Range Front Broiler Drawer Glide
43WCI 3051723
43AWCI 3051724
