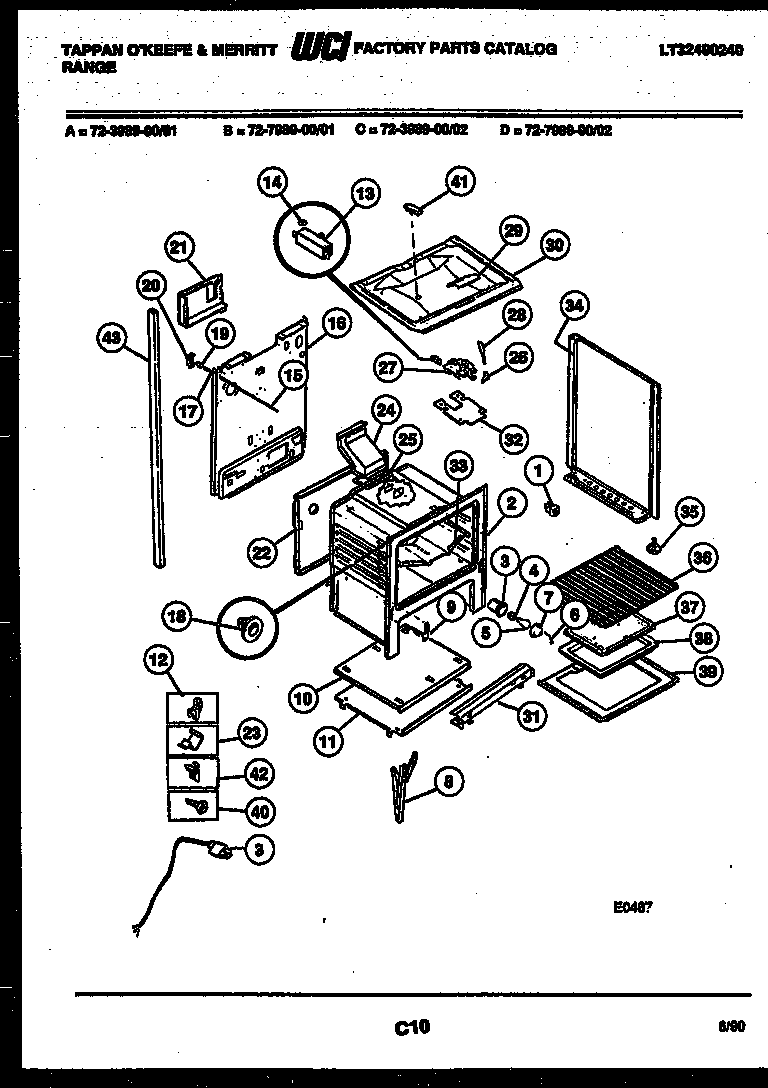

72-7989-23-02 07 – LOWER BODY PARTS

Products

Position	Product
*32369	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*32369	ANTI-TIP KIT (NOT ILLUSTRATED)
*32368	SHIELD-HEAT
1	SPACER-BODYSIDE, (8)
3	5304534000 Frigidaire Cord
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11	WCI 3131313
11A	WCI 655T437F01
12	WCI 08067754
13	WCI 3131672
14A	STUD SPACER (2) (NON-ILLUSTRATED)
14	FSTNR-PUSH ON
16	WCI 3203082
17	WCI 5303209316
18	3131903 Frigidaire Door/Drawer Bumper
19	SWITCH-OVEN LITE DOOR
20	WCI 5303131289
21	WCI 3131590
22	WCI 08067991
23	CLIP-WIRE
24	WCI 3131931
25	316542102 Frigidaire Flue Gasket
25B	WCI 08013188
25A	SHIELD-LATCH (NON-ILLUSTRATED)
26	WCI 5308010597
27	WCI 5303015453
28	WCI 5303131357
29	WCI 08067757
30	WCI 3011597
31	SHIELD-FRONT
32	SHIELD-OVN TOP
33	WCI 3200836
34	PNL-BODYSIDE RH-ALMOND
34A	PNL-BODYSIDE LH-ALMOND
35	SCREW-LEVELING
36	316067902 Frigidaire Oven Rack
37	WCI 5303131356
38	PAN-BROILER
39	BTTM-OVEN
39A	316064600 Frigidaire Oven Support
40	316282700 Frigidaire Oven Screw
41A	WCI 08067961
41C	08067973 Frigidaire 0 Insulation
41F	WCI 655T434F01
41D	WCI 3012943
41B	INSULATION OVEN BACK (NON-ILLUSTRATED)
41E	INSULATION, OVEN WRAPPER
41	WCI 3015371
42	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
43	WCI 3051723
43A	WCI 3051724
