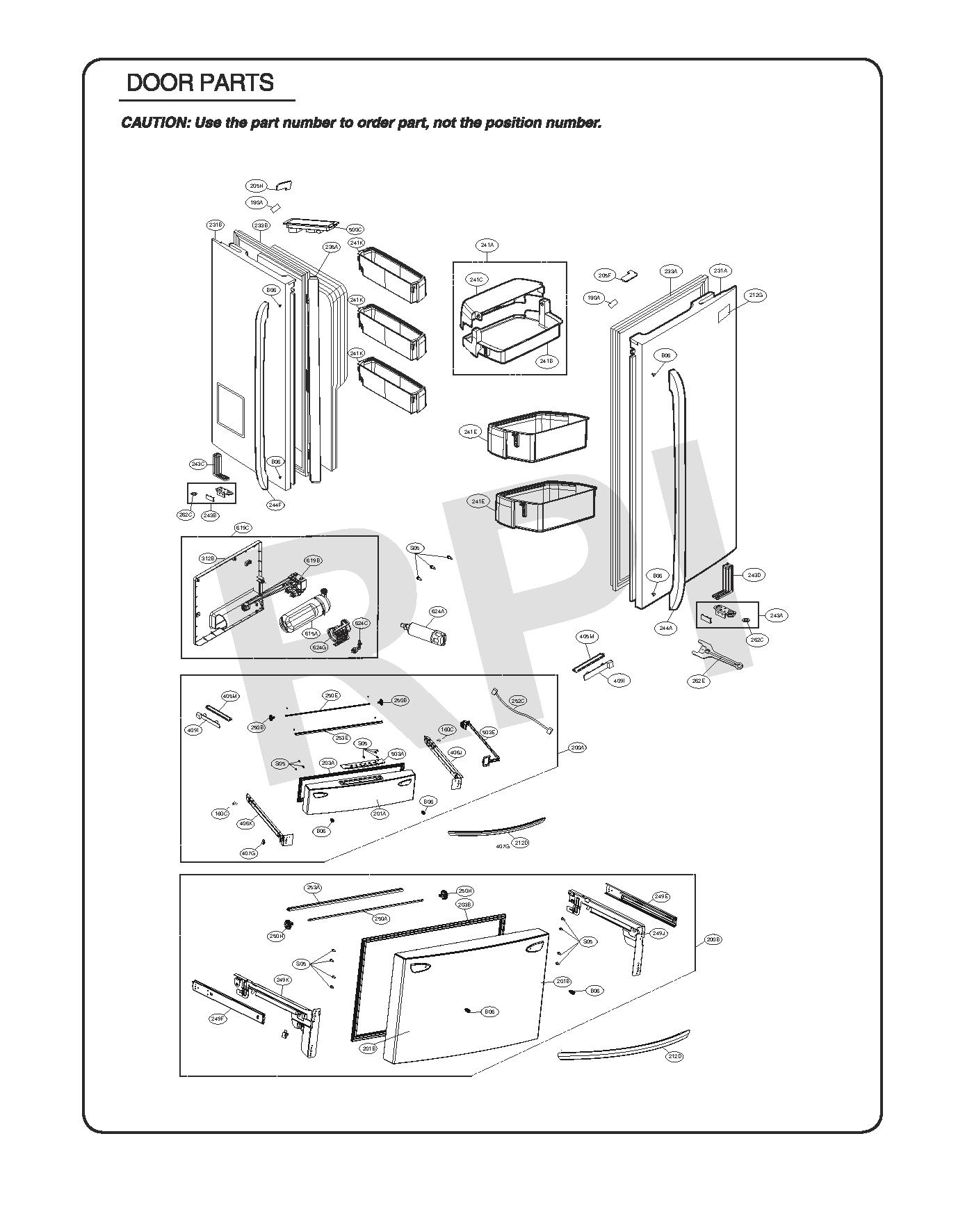

PositionProduct
B06MJB63190001 LG Refrigerator Handle Stopper Screw
S05FAB30025701 LG Screw Assembly
160CAHJ35783201 LG Refrigerator Roller Assembly
180ARAB32775604 LG Ferrite Magnet
200AADC71691150 LG Freezer Upper Door Assembly
200BDoor Assembly,Freezer(Lower)
201BADD74236202 LG Refrigerator Freezer Door Foam Assembly
201AADD74236102 LG Refrigerator Freezer Door Foam Assembly
203AGasket Assembly,Door
203BADX73450630 LG Refrigerator Door Gasket Assembly
205HMBL65698301 LG Refrigerator Cover Cap
205FMBL65698302 LG Cap Cover Assembly
212DAED72952715 LG Handle Assembly
212GMFT61866214 LG Nameplate
231AADD74615802 LG Door Foam Assembly
231BADD74236502 LG Door Foam Assembly
233AADX72930428 LG Refrigerator Door Gasket Assembly
233BADX72930443 LG Door Gasket Assembly
235AAGU74268161 LG Refrigerator Front Plate Assembly
241EBASKET ASSY-DOOR
241KAAP73252302 LG Refrigerator Door Shelf Basket Assembly
241BAAP73351301 LG Refrigerator Door Shelf Basket Assembly
243DAEH36821910 LG Refrigerator Center Hinge Assembly
243CAEH36821908 LG Refrigerator Center Door Hinge Assembly
243AAJC68689633 LG Refrigerator Door Stopper Assembly
243BAJC68689632 LG Door Stopper Assembly
244FAED72952826 LG Refrigerator Handle Assembly
244AAED72952820 LG Refrigerator Handle Assembly
249KMCD62527204 LG Refrigerator Rail Connector
249EMGT61844010 LG Slide Rail
249FMGT61844009 LG Slide Rail
249JMCD62527203 LG Refrigerator Rail Connector
250BMDT62567501 LG Ice Gear
250EMAK39123912 LG Refrigerator Bar
250HMDT62287201 LG Ice Gear
250AMAK64727001 LG Bar Refrigerator
252CEAD62885101 LG Assembly Harness
253AMJH62553609 LG Refrigerator Cover Support
253EMJH62553608 LG Refrigerator Cover Support
262EMHU38218908 LG Refrigerator Spanner
262CMGZ42997101 LG Ring
312BMCK67971001 LG Refrigerator Front Cover
405MMCK66769001 LG Lamp Cover
406KACJ73650102 LG Connector Assembly
406JACJ73650101 LG Connector Assembly
407GMCK67227902 LG Refrigerator Door Switch Cover
409IEAV61652805 LG LED Assembly
500CABQ72940028 LG Refrigerator Circuit Board Case Assembly
503AACQ87038604 LG Display Cover Assembly
503EMCK67972701 LG Display Cover Assembly
615AMJM62864601 TANK-WATER
619BMJX62831301 LG Refrigerator Water Valve
619CADQ73913306 LG Water Filter Assembly
624AADQ73613402 LG Refrigerator Water Filter
624CMCD62887401 LG Tube Connector
624GADQ73613301 LG Filter Head Assembly
