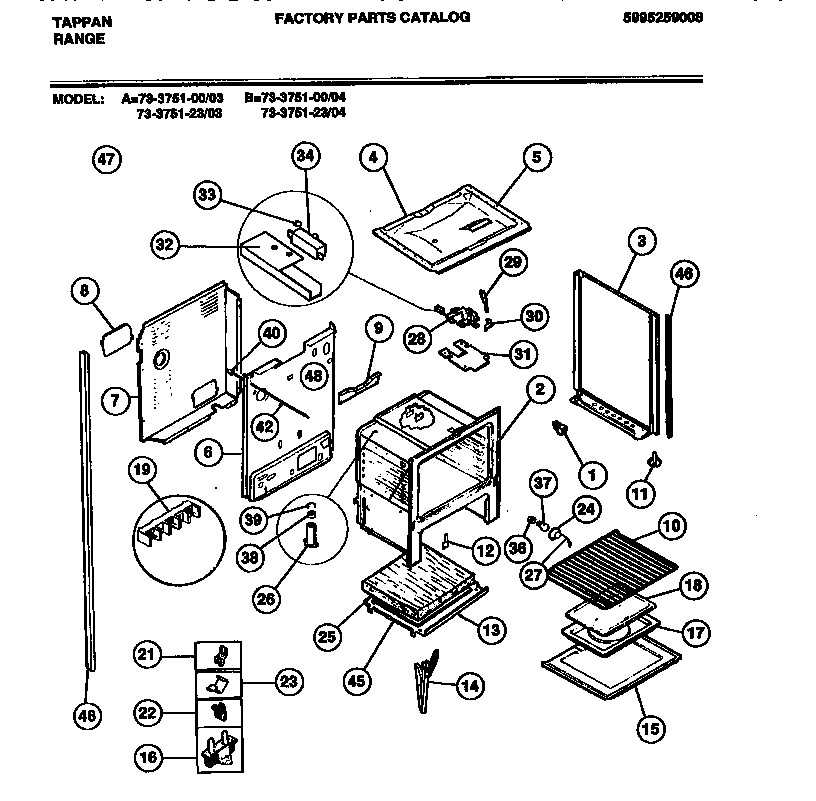

73-3751-00-03 09 – CAVITYadmin2025-04-26T08:49:27+00:0073-3751-00-03 09 – CAVITY
Products
| Position | Product |
|---|
| 1 | SPACER-BODYSIDE, (8) |
| 2 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 3 | PNL-B/S-LH-WHITE |
| 3B | PNL-B/S-RH-WHITE |
| 3A | WCI 5303269545 |
| 3C | WCI 5303269543 |
| 4 | WCI 5303271658 |
| 5 | WCI 08067757 |
| 6 | WCI 316029405 |
| 7 | SHIELD-REAR WALL, LOWER |
| 8 | COVER-ACCESS |
| 9 | COVER-FLUE |
| 10 | 316067902 Frigidaire Oven Rack |
| 11 | SCREW-LEVELING |
| 12 | WCI 3131570 |
| 13 | SHIELD, OVEN BOTTOM |
| 14 | Hinge,oven door ,(2) |
| 15 | PANEL-OVEN BOTTOM |
| 16 | WCI 5303051385 |
| 17 | PAN-BROILER |
| 18 | WCI 5303131356 |
| 19 | 5303935058 Frigidaire Oven Burner Receptacle Kit |
| 21 | WCI 08067754 |
| 22 | 3051162 Frigidaire Oven Range Front Broiler Drawer Glide |
| 23 | WCI 3051367 |
| 24 | 5304524341 Frigidaire Lens |
| 25 | 316403803 Frigidaire Insulation |
| 26 | WCI 3051344 |
| 27C | 3131903 Frigidaire Door/Drawer Bumper |
| 27A | INSULATION, OVEN WRAPPER |
| 27B | INSULATION OVEN BACK (NON-ILLUSTRATED) |
| 27D | SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2 |
| 27E | 316205500 Frigidaire Oven Nut |
| 27 | RETAINER-GLASS |
| 28 | WCI 5303015361 |
| 29 | WCI 5303131357 |
| 30 | WCI 3203218 |
| 30A | WCI 08013188 |
| 31 | SHIELD-LATCH (NON-ILLUSTRATED) |
| 32 | SHIELD-LATCH |
| 33 | FSTNR-PUSH ON |
| 34 | SWITCH-LATCHING |
| 36 | 316116400 Frigidaire Oven Light Socket |
| 37 | 316538904 Frigidaire Oven Lamp Light |
| 38 | WCI 08067810 |
| 39 | WCI 08010606 |
| 40 | WCI 316027702 |
| 42 | WCI 316026800 |
| 45A | INSULATION, OVEN TOP |
| 45B | SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED) |
| 45C | FASTENER-EDGE MTG (NOT ILLUSTRATED) |
| 45 | WCI 3200848 |
| 46A | TUBE-POST LH |
| 46 | WCI 5303208642 |
| 46C | 3203550 Frigidaire Oven Plug |
| 46B | ANTI-TIP KIT (NOT ILLUSTRATED) |
| 47 | WCI 3203582 |
| 48 | COVER-LIGHT/SWITCH ROD |
