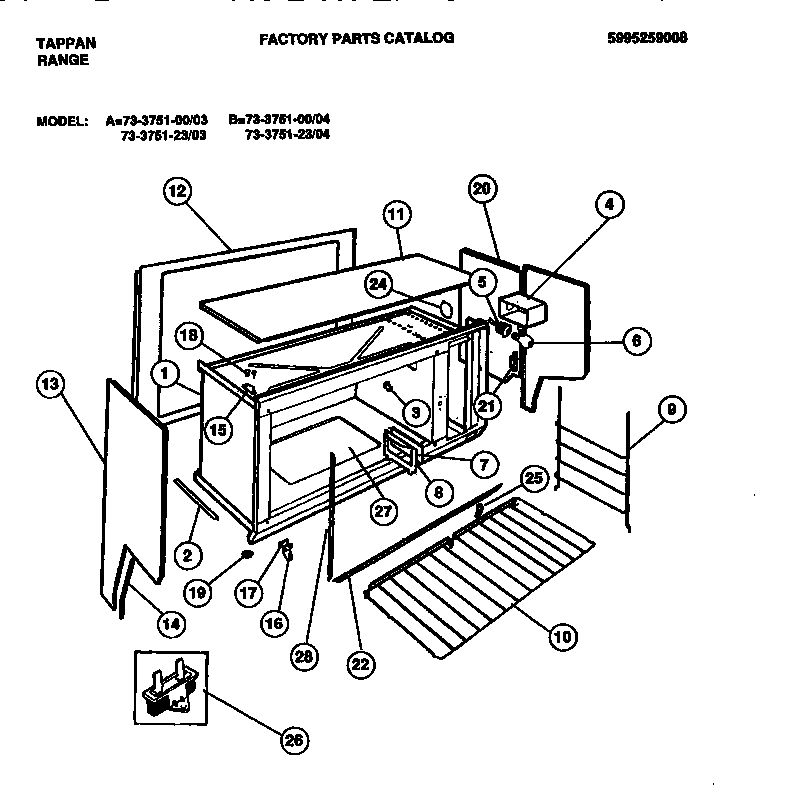

| 1 | WIRING HARNESSES ARE NOT AVAILABLE FOR THIS MODEL |
| 2C | WCI 3015591 |
| 2B | WCI 3015588 |
| 2A | WCI 3015590 |
| 2 | ANGLE-STIFFENER |
| 3 | 5303284616 Frigidaire Range Bulb Clip Thermostat |
| 4 | BOX-LIGHT |
| 5 | 316116400 Frigidaire Oven Light Socket |
| 6 | 316538904 Frigidaire Oven Lamp Light |
| 7 | GLASS-OVN LITE LENS |
| 8 | WCI 08011669 |
| 9 | GLIDE-OVEN RACK |
| 10 | RACK-OVEN, FLAT |
| 11 | PNL-TOP U/O |
| 12 | WCI 3051236 |
| 13A | PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED) |
| 13C | PANEL-BODYSIDE, ALMOND, RH |
| 13B | WCI 3051263 |
| 13 | PANEL-BODYSIDE, WHITE, LH (NOT ILLUSTRATED) |
| 14A | WCI 08010549 |
| 14 | WCI 5303269815 |
| 15 | HINGE-DOOR-TOP |
| 16 | HINGE-DOOR ASSY |
| 17 | WCI 08011665 |
| 18 | SCREW-10-32 SHOULDER SPECIAL (2) |
| 19 | WASHER-BLACK |
| 20 | SHIELD-WOOL |
| 21 | WCI 08011680 |
| 22 | SEAL-OVEN BOTTOM |
| 24 | WCI 08067732 |
| 25 | STRIKE U/O DOOR ALIGN |
| 26 | FUSE-THERMO CUTOUT |
| 27 | OVEN BOTTOM |
| 28 | SEAL-OVEN SIDES |
| 28A | WIRING DIAGRAM (NOT FOR PURCHASE) (NON-ILLUSTRATED) |
