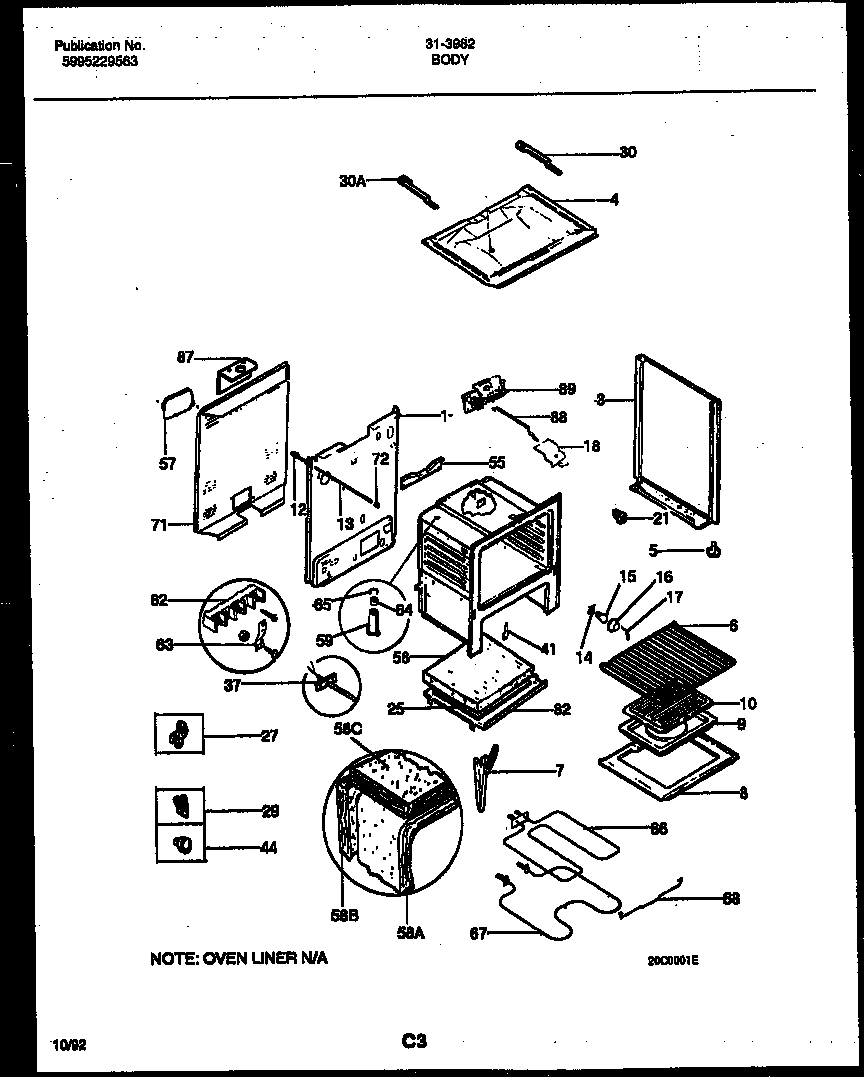

73-3751-66-02 08 – UPPER BODY PARTS

Products

Position	Product
*80477	WIRING DIAGRAM (NOT FOR PURCHASE) (NON-ILLUSTRATED)
2	ANGLE-STIFFENER
2C	WCI 3015591
2B	WCI 3015588
2A	WCI 3015590
3	5303284616 Frigidaire Range Bulb Clip Thermostat
4	BOX-LIGHT
5	316116400 Frigidaire Oven Light Socket
6	316538904 Frigidaire Oven Lamp Light
7	GLASS-OVN LITE LENS
8	WCI 08011669
9	GLIDE-OVEN RACK
10	RACK-OVEN, FLAT
11	PNL-TOP U/O
12	WCI 3051236
14A	WCI 08010549
14	WCI 5303269815
15	HINGE-DOOR-TOP
16	HINGE-DOOR ASSY
17	WCI 08011665
18	SCREW-10-32 SHOULDER SPECIAL (2)
19	WASHER-BLACK
20	SHIELD-WOOL
21	WCI 08011680
22	SEAL-OVEN BOTTOM
24	WCI 08067732
25	STRIKE U/O DOOR ALIGN
26	FUSE-THERMO CUTOUT
27	OVEN BOTTOM
28	SEAL-OVEN SIDES
