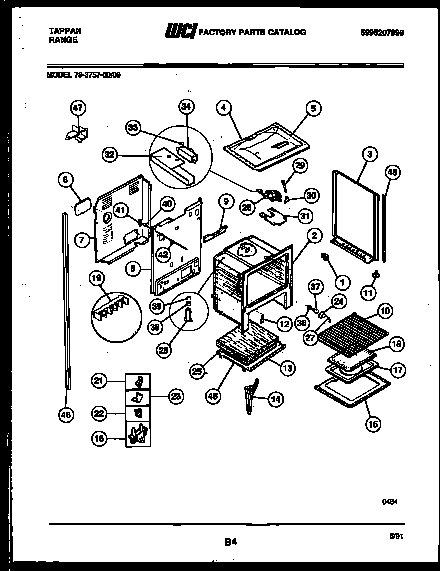

73-3757-00-09 09 – LOWER BODY PARTS

73-3757-00-09 09 – LOWER BODY PARTS

Written by

in

73-3757-00-09 09 – LOWER BODY PARTS

Products

PositionProduct
1SPACER-BODYSIDE, (8)
3AWCI 5303269543
3WCI 5303269545
3PNL-B/S LH-WHEAT
3APNL-B/S RH-WHEAT
3APNL-B/S-RH-WHITE
3PNL-B/S-LH-WHITE
4WCI 5303271658
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14CHAN-DOOR HINGE (2)
15PANEL-OVEN BOTTOM
16FUSE-THERMO CUTOUT
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
21WCI 08067754
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27RETAINER-GLASS
