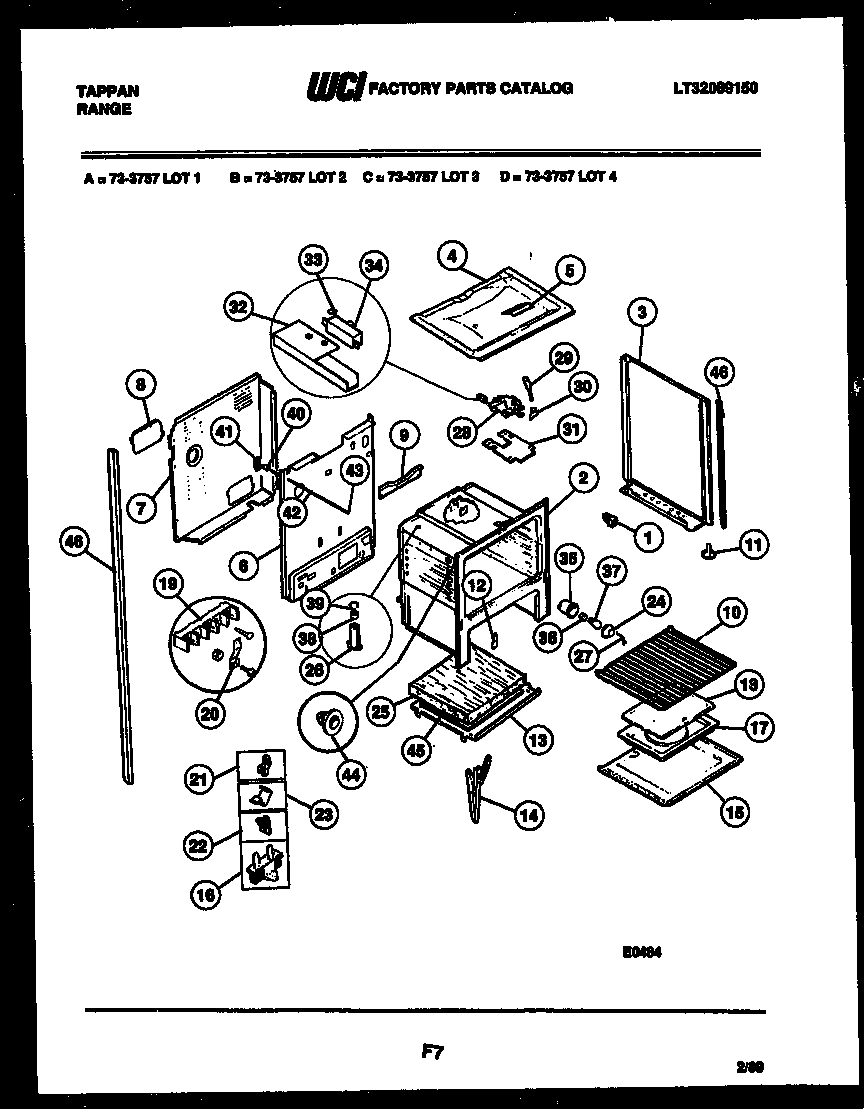

73-3757-23-02 09 – LOWER BODY PARTS

Products

Position	Product
*66049	316403803 Frigidaire Insulation
1	WCI 665T188P02
3	PNL. B/S (LH ALMOND)
3A	PNL. B/S (RH ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	WCI 3051398
14	CHANL-DR HNG (2)
15	WCI 3051104
16	FUSE-THERMO CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	INSULATION, BOTTOM
26	WCI 3051344
27A	INSULATION, OVEN TOP
27C	3131903 Frigidaire Door/Drawer Bumper
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27	WCI 3131104
28	WCI 3051258
29	WCI 3131357
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	WCI 358T158S02
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	WCI 695T226P01
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	WCI 695T128P03
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 174T329P01
44	BUTTON-REMOTE SW
45A	WCI 3131305
45	WCI 3200848
46	WCI 3051723
