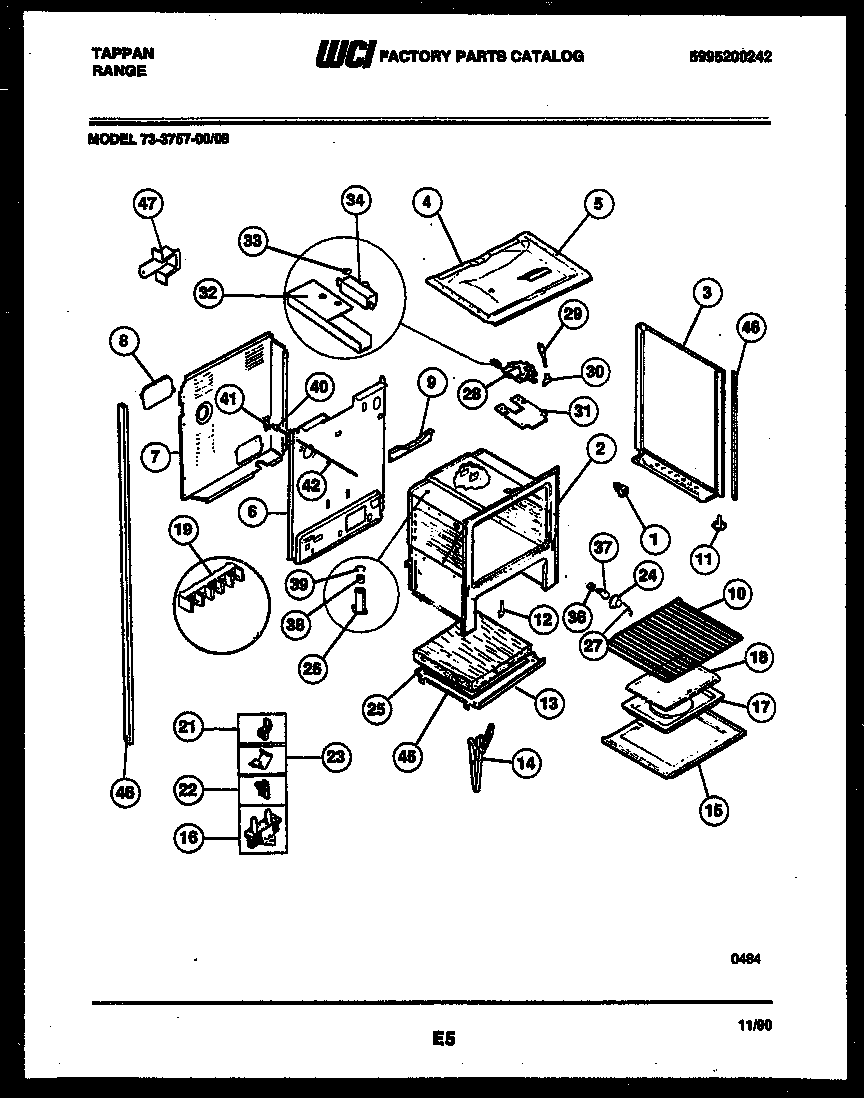

73-3757-23-08 09 – LOWER BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3A	PNL-BODYSIDE RH-ALMOND
3	PNL-BODYSIDE LH-ALMOND
4	WCI 08067749
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
16	FUSE-THERMO CUTOUT
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27C	3131903 Frigidaire Door/Drawer Bumper
27	RETAINER-GLASS
27A	INSULATION, OVEN WRAPPER
27E	316205500 Frigidaire Oven Nut
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
27D	SCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
28	WCI 5303015361
29	WCI 5303131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 3131672
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45A	INSULATION, OVEN TOP
45	WCI 3200848
46C	3203550 Frigidaire Oven Plug
46A	TUBE-POST LH
46	WCI 5303208642
46B	ANTI-TIP KIT (NOT ILLUSTRATED)
47	WCI 3203582
