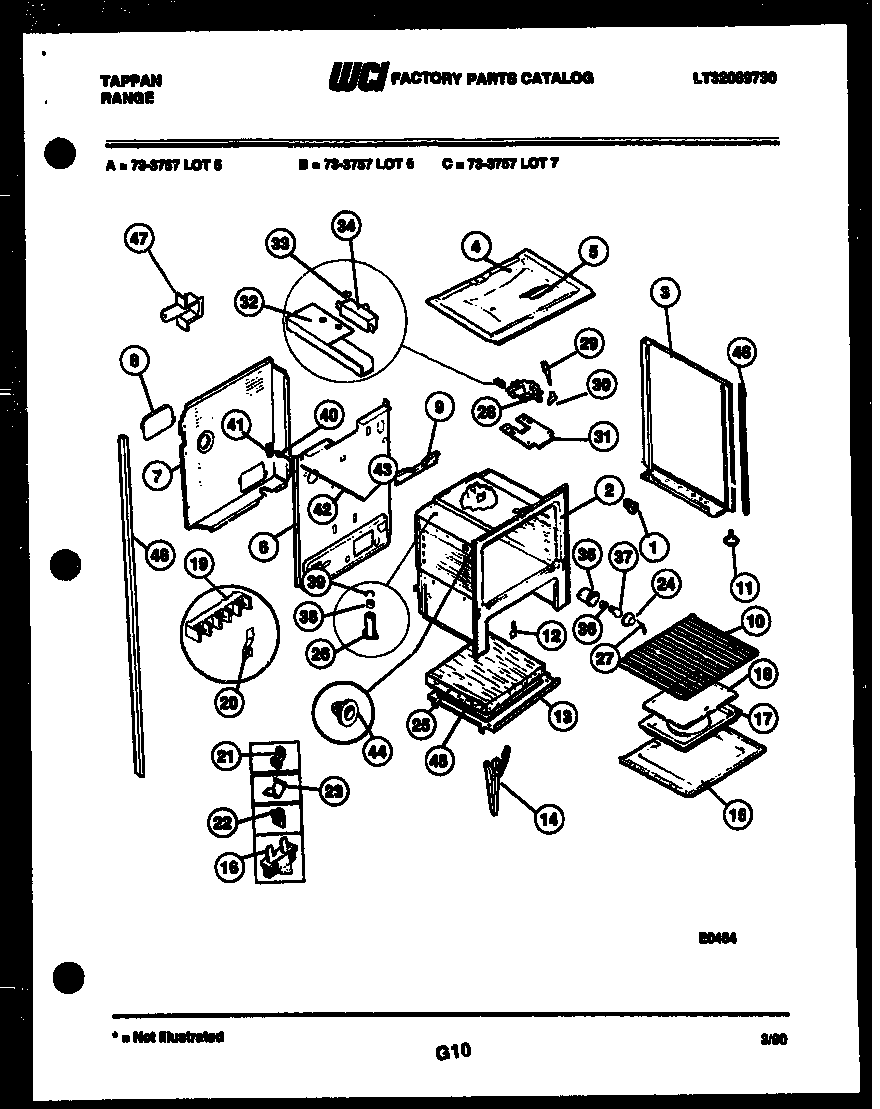

73-3757-66-05 09 – LOWER BODY PARTS

Products

Position	Product
1	WCI 665T188P02
3	PNL B/S-RH (WHEAT)
3A	PNL B/S-LH (WHEAT)
4	WCI 3051109
5	WCI 3131101
6	WCI 3203404
7	SHIELD, LOWER WALL
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHANL-DR HNG (2)
15	WCI 3051104
16	FUSE-THERMO CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
25	316403803 Frigidaire Insulation
26	WCI 3051344
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27	WCI 3131104
27A	INSULATION, OVEN WRAPPER
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
28	WCI 3051258
29	WCI 3131357
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
30	WCI 358T158S02
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	WCI 695T226P01
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 244T041P01
39	RETAIN, CATALYST
40	WCI 695T128P03
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 174T329P01
44	BUTTON-REMOTE SW
45	WCI 3200848
45A	WCI 3131305
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
46	WCI 3051723
46A	WCI 3051724
46B	ANTI-TIP KIT (NOT ILLUSTRATED)
