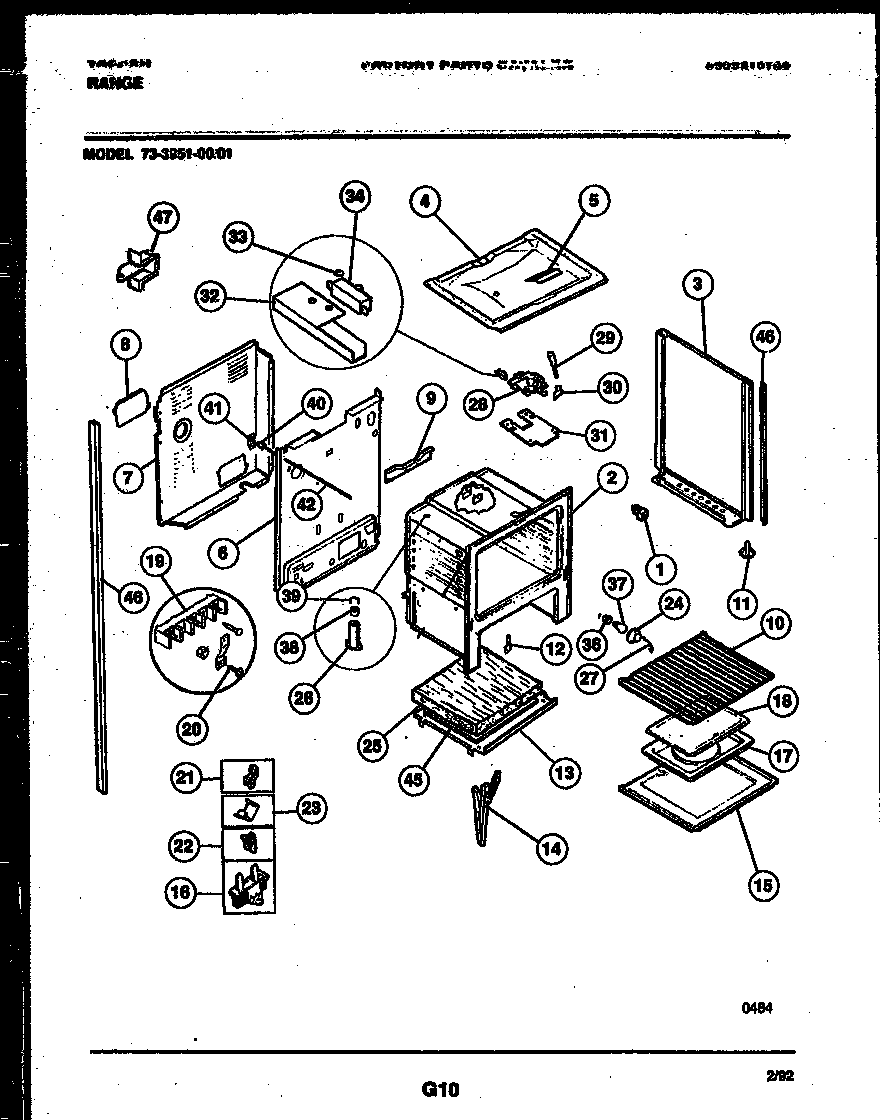

73-3951-00-01 08 – LOWER BODY PARTS

Products

Position	Product
*65628	WCI 19100230001
*65628	3203550 Frigidaire Oven Plug
1	SPACER-BODYSIDE, (8)
3	PNL-B/S-LH-WHITE
4	WCI 5303271658
5	WCI 08067757
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	CHAN-DOOR HINGE (2)
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	PLATE-GROUND STRAP
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27C	3131903 Frigidaire Door/Drawer Bumper
27A	INSULATION, OVEN WRAPPER
27	RETAINER-GLASS
27E	316205500 Frigidaire Oven Nut
27D	SCREW-HANDLE MTG, WAFER HEAD, 10-24T X 2
27B	INSULATION OVEN BACK (NON-ILLUSTRATED)
28	WCI 3017396
29	WCI 5303131357
30A	WCI 08013188
30	WCI 3203218
31	SHIELD-LATCH (NON-ILLUSTRATED)
32	SHIELD-LATCH
33	FSTNR-PUSH ON
34	WCI 08067781
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	WCI 08010606
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	WCI 5303209316
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45	WCI 3200848
45A	INSULATION, OVEN TOP
46B	ANTI-TIP KIT (NOT ILLUSTRATED)
46A	TUBE-POST LH
46	WCI 5303208642
47	WCI 3203582
