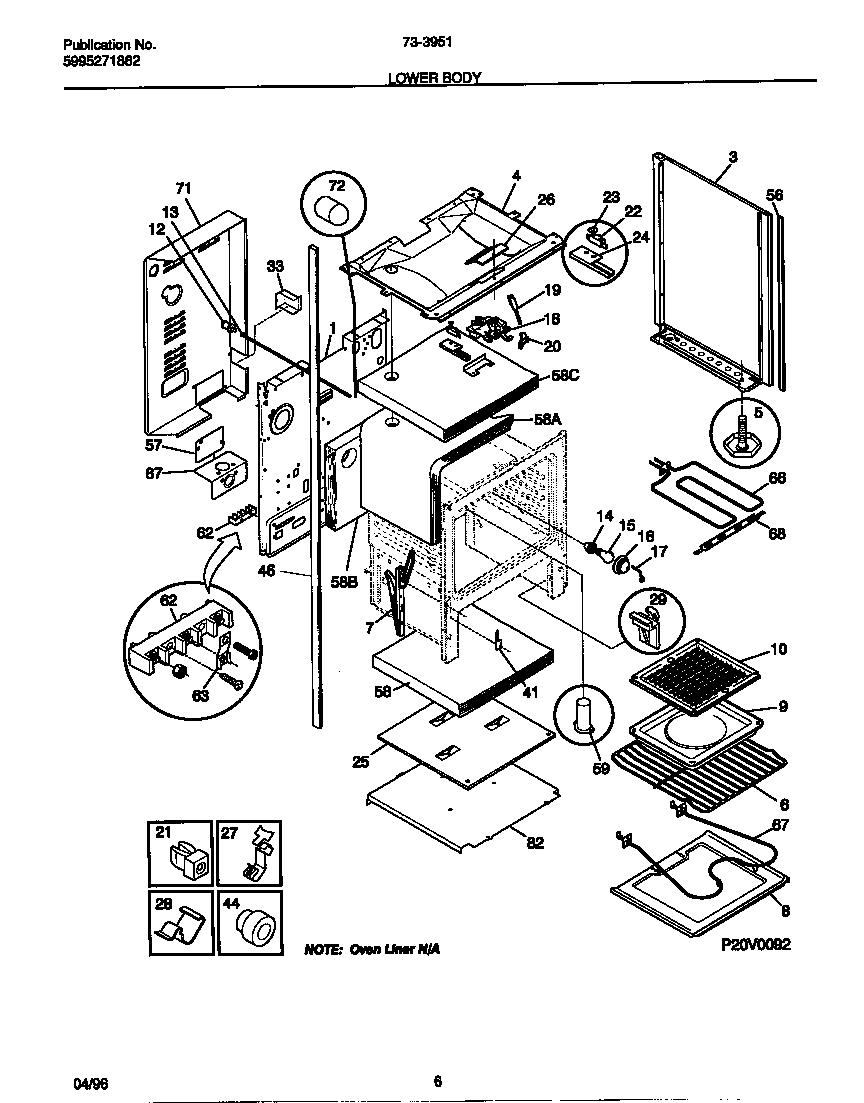

73-3951-00-04 04 – LOWER BODY

73-3951-00-04 04 – LOWER BODY

Written by

in

73-3951-00-04 04 – LOWER BODY

Products

PositionProduct
*10249WCI 5303051385
*10250WCI 5303314107
*102453203550 Frigidaire Oven Plug
*10246316205500 Frigidaire Oven Nut
*10248SCREW-10-32 SHOULDER SPECIAL (2)
*10247316021105 Frigidaire Oven Screw
*10244COVER-FLUE
1WCI 316029410
3WCI 316081005
3WCI 316081004
3SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
4WCI 5303271658
5CNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5B316116000 Frigidaire Screw
5ASCREW-LEVELING
5DANTI-TIP KIT (NOT ILLUSTRATED)
6316067902 Frigidaire Oven Rack
7WCI 316007002
8PANEL-OVEN BOTTOM
9PAN-BROILER
10WCI 5303131356
12WCI 316027702
13WCI 316026800
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17RETAINER-GLASS
18BSHIELD-LATCH (NON-ILLUSTRATED)
18AWCI 5303015361
19WCI 5303131357
20BWCI 08013188
20AWCI 3203218
21SPACER-BODYSIDE, (8)
22AWCI 08067781
22BSTUD SPACER (2) (NON-ILLUSTRATED)
23FSTNR-PUSH ON
24SHIELD-LATCH
25WCI 3200848
26WCI 08067757
27WCI 08067754
28WCI 3051367
293051162 Frigidaire Oven Range Front Broiler Drawer Glide
33WCI 3203582
41WCI 3131570
443131903 Frigidaire Door/Drawer Bumper
46BTUBE-POST LH
46AWCI 5303208642
56TRIM – VERTICAL B/S (2)
57COVER-ACCESS
58INSULATION, OVEN TOP
58WCI 316054200
58316403803 Frigidaire Insulation
58INSULATION, OVEN WRAPPER
59WCI 316073600
625304409888 Frigidaire Oven Terminal Block with Hardware
63PLATE=GROUND STRAP
665303051140 Frigidaire Broil Element
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71SHIELD-REAR WALL, LOWER
72COVER-LIGHT/SWITCH ROD
82SHIELD, OVEN BOTTOM
87WCI 5303206618
