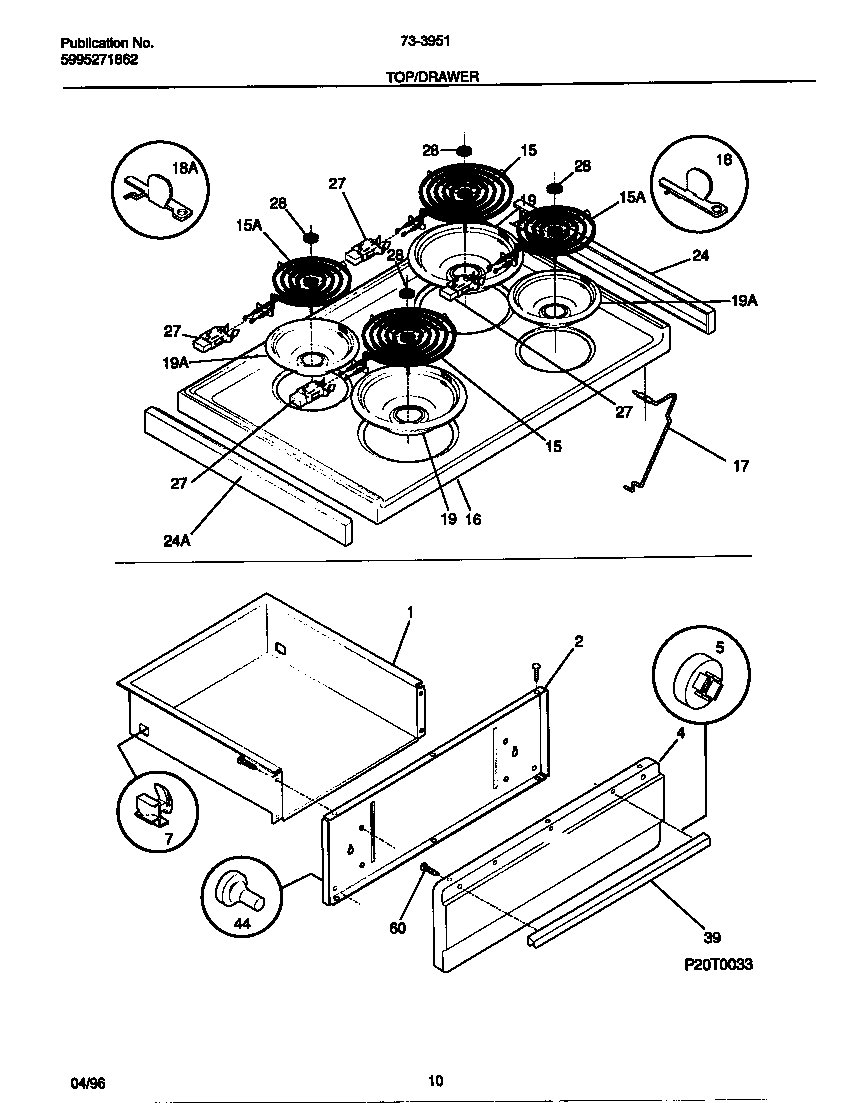

73-3951-00-04 06 – TOP/DRAWER

Products

Position	Product
1	DRAWER-UTILITY
2	SHIELD-PNL
4A	WCI 316056207
4B	SCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
5	FSTNR, SPACER (2)
7	3051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15	318372211 Frigidaire Oven 6" Electric Range Burner Kit
15	316442301 Frigidaire Oven 8 Coil Element 2600W
16	WCI 5303013511
17	WCI 316066900
18	BRACKET-HINGE,MAIN TOP RH
18	BRACKET-HINGE,MAIN TOP LH
19	316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19	L304430992 Frigidaire 6" Drip Bowl Chrome FM
24	WCI 3051354
24	WCI 3051355
27	5303935058 Frigidaire Oven Burner Receptacle Kit
28	WCI 5308067828
39	HANDLE
44	3131903 Frigidaire Door/Drawer Bumper
60	5303300265 Frigidaire Oven Screw
