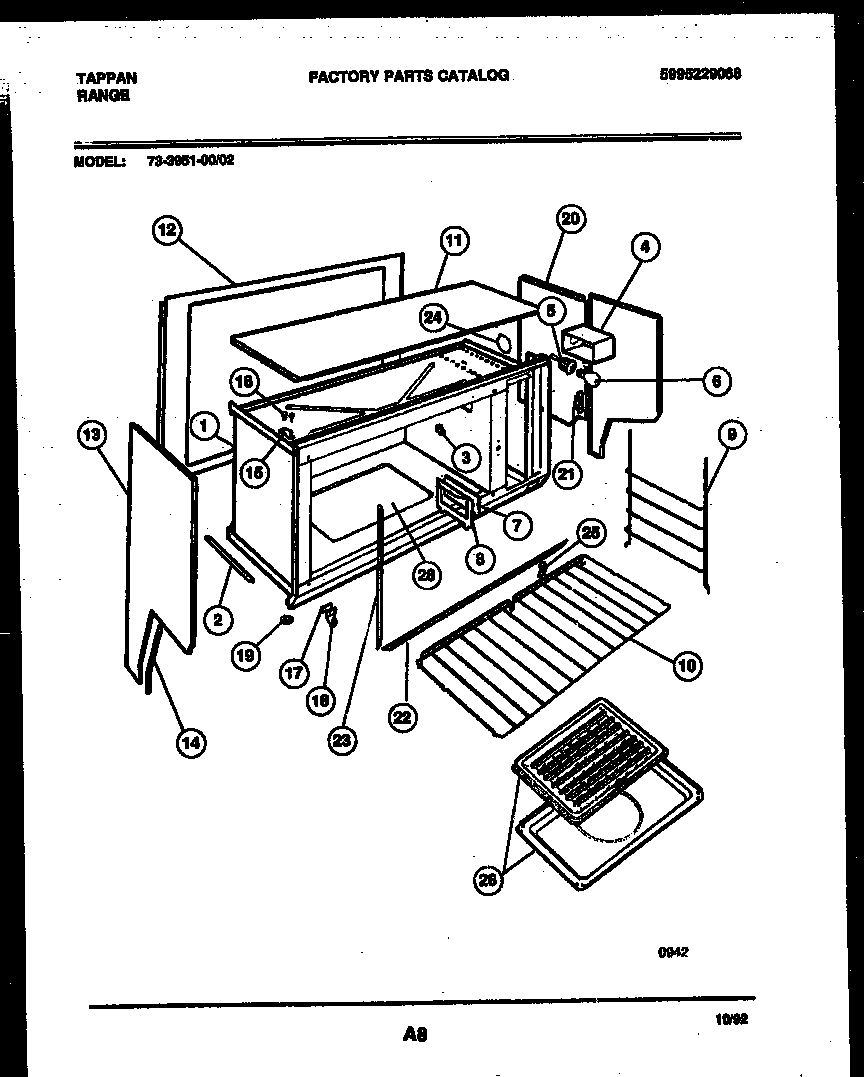

73-3951-23-02 07 – UPPER BODY PARTS

73-3951-23-02 07 – UPPER BODY PARTS

Written by

in

73-3951-23-02 07 – UPPER BODY PARTS

Products

PositionProduct
*80349FUSE-THERMO CUTOUT
2BWCI 3015588
2CWCI 3015591
2ANGLE-STIFFENER
2AWCI 3015590
35303284616 Frigidaire Range Bulb Clip Thermostat
4BOX-LIGHT
5316116400 Frigidaire Oven Light Socket
6316538904 Frigidaire Oven Lamp Light
7GLASS-OVN LITE LENS
8WCI 08011669
9GLIDE-OVEN RACK
10RACK-OVEN, FLAT
11PNL-TOP U/O
12WCI 3051236
13PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
13PANEL-BODYSIDE, ALMOND, RH
14AWCI 08010549
14WCI 5303269815
15HINGE-DOOR-TOP
16HINGE-DOOR ASSY
17WCI 08011665
18SCREW-10-32 SHOULDER SPECIAL (2)
19WASHER-BLACK
20SHIELD-WOOL
21WCI 08011680
22SEAL-OVEN BOTTOM
23SEAL-OVEN SIDES
24WCI 08067732
25STRIKE U/O DOOR ALIGN
265304442087 Frigidaire Range Wall Oven Broil Pan and Insert
28OVEN BOTTOM
