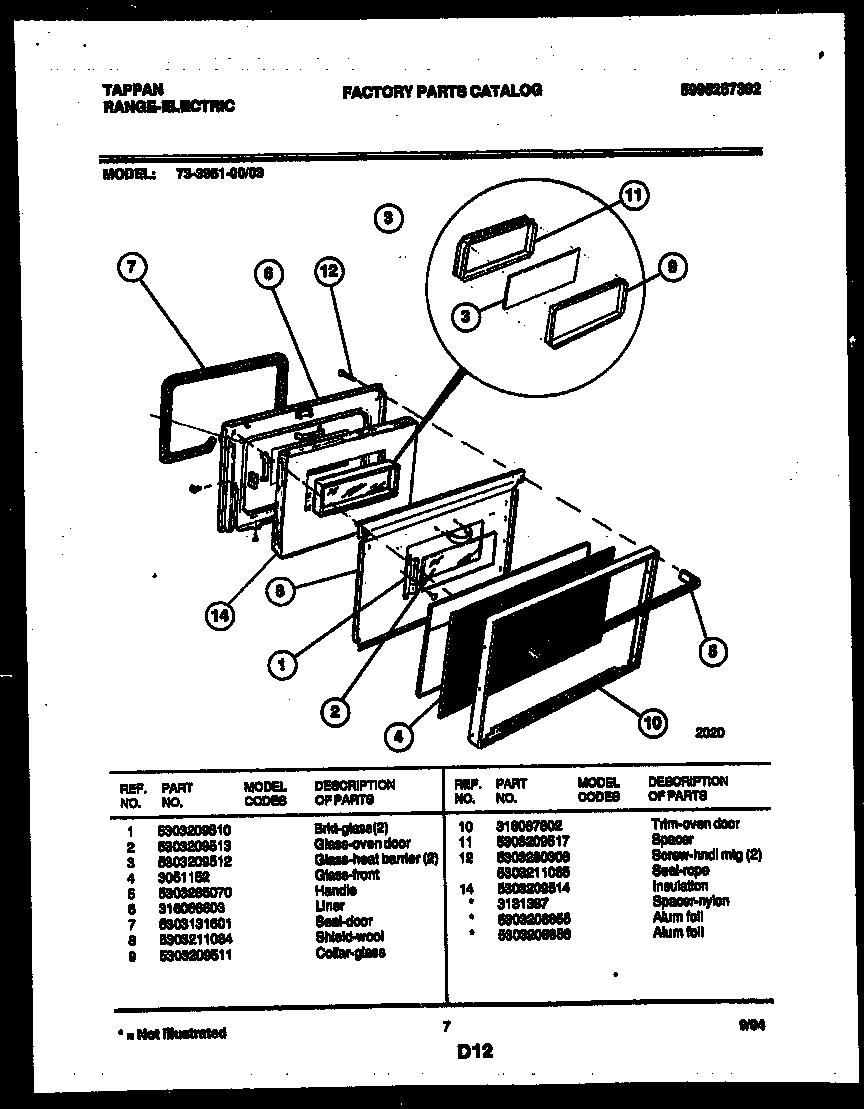

73-3951-23-03 06 – LOWER OVEN DOOR PARTS

73-3951-23-03 06 – LOWER OVEN DOOR PARTS

Written by

in

73-3951-23-03 06 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*10593REFLECTOR, ALUMINUM FOIL
*10593FSTNR, SPACER (2)
*105935303208655 Frigidaire Reflector Assembly
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4GLASS-OVEN DOOR, BLACK, OUTER
5WCI 5303285070
6WCI 316066603
75303131601 Frigidaire Oven Seal
8SHIELD-INSULATION
9WCI 5303209511
10WCI 316067802
11WCI 5303209517
12ASEAL-ROPE, 0.25 DIA
12WCI 5303280308
14INSULATION-OVEN DOOR
