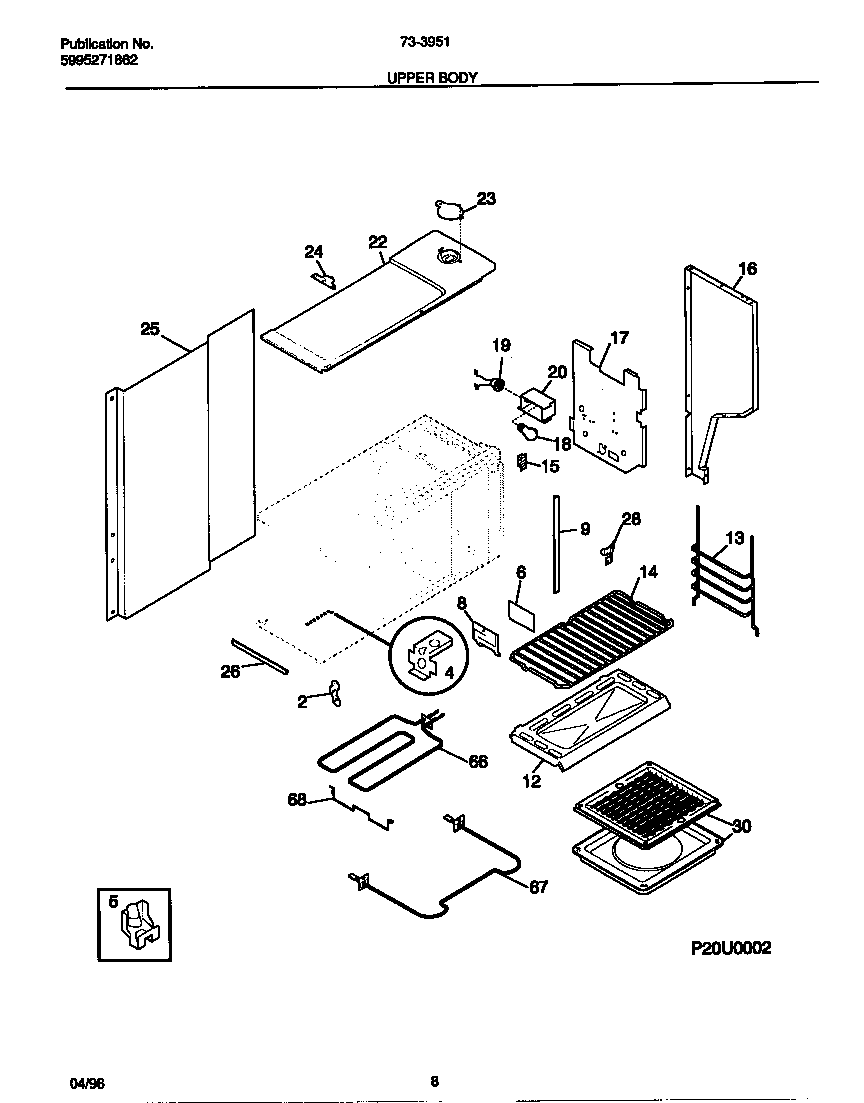

73-3951-23-04 05 – UPPER BODY

Products

Position	Product
*10253	WCI 3015591
*10255	5303300265 Frigidaire Oven Screw
*10254	WCI 3204440
*10257	WCI 3051467
*10256	SCREW-10-32 SHOULDER SPECIAL (2)
*10258	FUSE-THERMO CUTOUT
*10252	WCI 3015590
*10251	WCI 3015588
2	HINGE-DOOR ASSY
4	WCI 08011665
5	5303284616 Frigidaire Range Bulb Clip Thermostat
6	GLASS-OVN LITE LENS
8	WCI 08011669
9	WCI 5303934092
12	OVEN BOTTOM
13	GLIDE-OVEN RACK
14	RACK-OVEN, FLAT
16	PANEL-BODYSIDE, ALMOND, RH
16	PANEL-BODYSIDE, ALMOND, LH (NOT ILLUSTRATED)
17	SHIELD-WOOL
18	316538904 Frigidaire Oven Lamp Light
19	316116400 Frigidaire Oven Light Socket
20	BOX-LIGHT
22	PNL-TOP U/O
23	WCI 08067732
24	HINGE-DOOR-TOP
25	WCI 3051236
26	WCI 5303293168
28	STRIKE U/O DOOR ALIGN
30	5304442087 Frigidaire Range Wall Oven Broil Pan and Insert
66	WCI 3015187
67	5303307010 Frigidaire Bake Element
68	WCI 3015584
