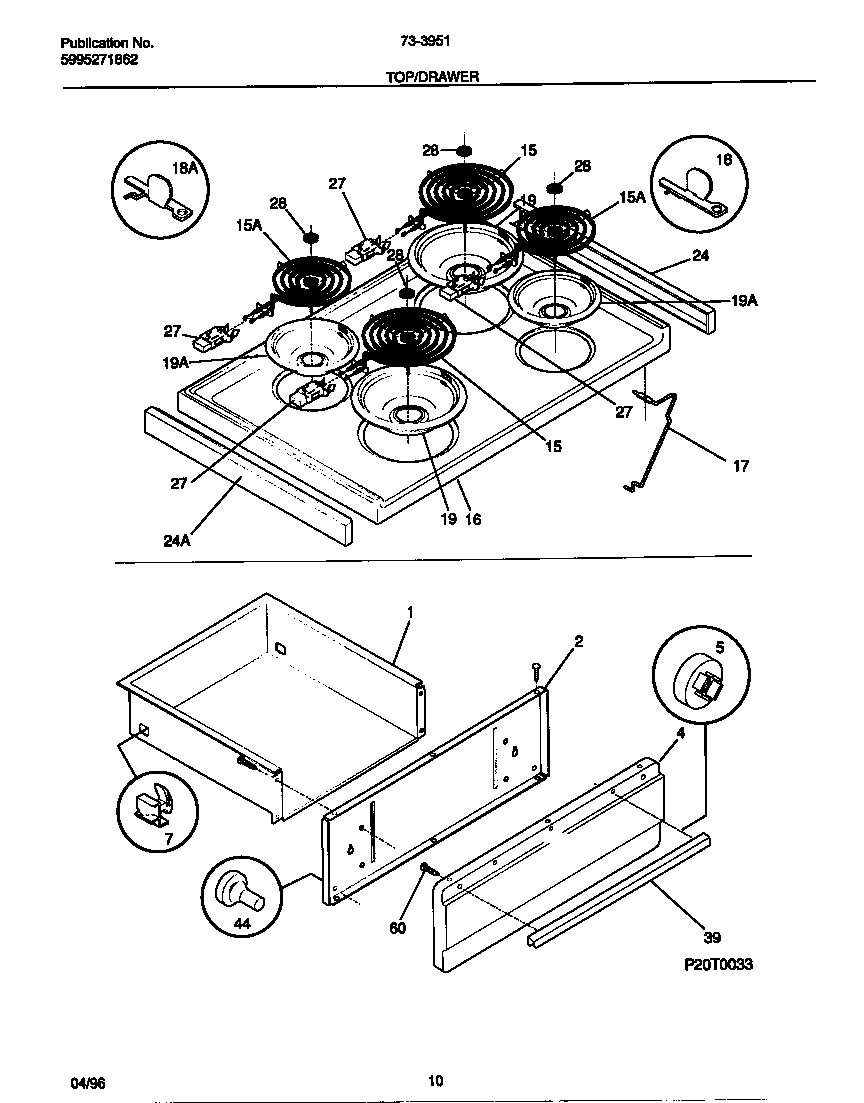

73-3951-23-04 06 – TOP/DRAWER

Products

PositionProduct
1DRAWER-UTILITY
2SHIELD-PNL
4BSCREW, HEX WASHER HEAD, 8-18(AB) X 1/2 (NOT ILLUSTRATED)
4AWCI 316056207
5FSTNR, SPACER (2)
73051163 Frigidaire Oven Range Rear Broiler Drawer Glide
15318372211 Frigidaire Oven 6" Electric Range Burner Kit
15316442301 Frigidaire Oven 8 Coil Element 2600W
16WCI 3013512
17WCI 316066900
18BRACKET-HINGE,MAIN TOP LH
18BRACKET-HINGE,MAIN TOP RH
19316048413 Frigidaire Oven Range Chrome 8" Drip Bow
19L304430992 Frigidaire 6" Drip Bowl Chrome FM
24WCI 3051354
24WCI 3051355
275303935058 Frigidaire Oven Burner Receptacle Kit
28WCI 5308067828
39HANDLE
443131903 Frigidaire Door/Drawer Bumper
605303300265 Frigidaire Oven Screw
