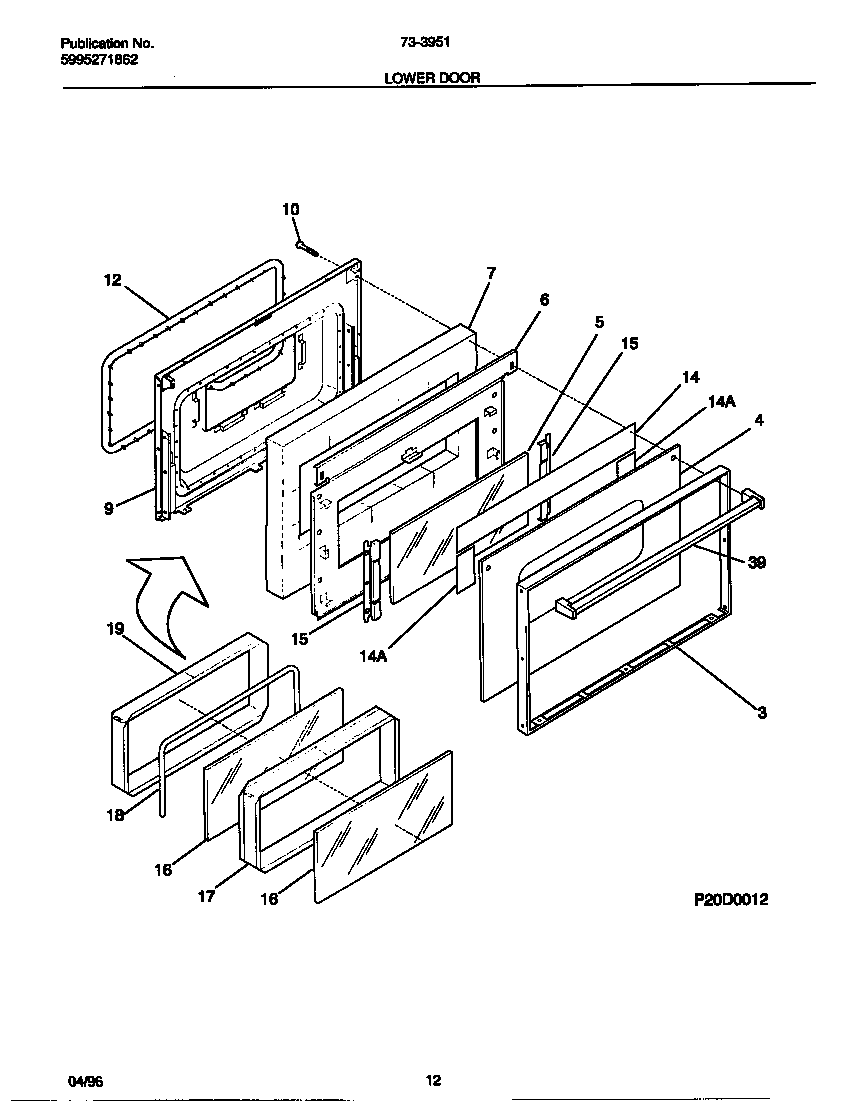

73-3951-23-04 07 – LOWER DOOR

Products

PositionProduct
*10259RIVET-POP, WARING-PLATE
*10260WCI 316065300
*10261SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*102625303285179 Frigidaire Oven Door Screw
3WCI 316067802
4GLASS-OVEN DOOR, BLACK, OUTER
5GLASS-OVEN DOOR, INNER
6SHIELD-INSULATION
7WCI 316076400
9WCI 316066603
10WCI 5303280308
125303131601 Frigidaire Oven Seal
14REFLECTOR, ALUMINUM FOIL
145303208655 Frigidaire Reflector Assembly
15BRACKET-GLASS MTG
16GLASS-OVEN DOOR, HEAT BARRIER, (2)
17WCI 5303209517
18SEAL-ROPE, 0.25 DIA
19WCI 316067600
39WCI 5303285070
